NJG1533KB2

Features:

Single low voltage control               +2.5~+6.5V
Low insertion loss                           0.4dB typ. @f=1GHz, P_IN=23dBm
                                                       0.5dB typ. @f=2GHz, P_IN=23dBm
High isolation                                  29dB typ. @f=2GHz, P_IN=23dBm
Handling power                              25dBm max. @f=2GHz, V_CTL=3.0V
Low current consumption               8uA typ. @f=0.05~2.5GHz, P_IN=23dBm
Ultra small & ultra thin package      FLP6-B2 (Package size: 2.0x2.1x0.75mm)

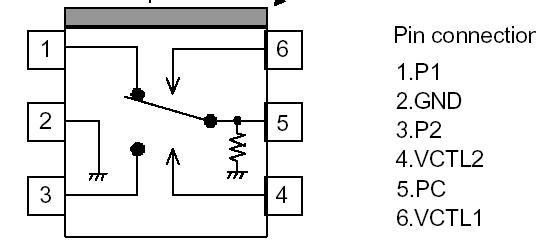

Pinout




Specifications

PARAMETER	SYMBOL	CONDITIONS	RATINGS	UNITS
Input Power	Pin	V CTL (L) =0V, V CTL (H) =2.7V	32	dBm
Control Voltage	VCTL	V CTL (H) - V CTL (L)	7.5	V
Power Dissipation	PD		450	mW
Operating Temp.	Topr		-30~+85	°C
Storage Temp.	Tstg		-55~+125	°C

Description

NJG1533KB2 is a SPDT switch IC featured low insertion loss, medium handling power and high isolation.

NJG1533KB2 is suitable for switching of Tx/Rx signals at sub-microwave applications.

NJG1533KB2 exhibits wide frequency range from 50MHz to 3.0GHz at low operating voltage of 2.5V, and is operated up to 25dBm at 3.0V operating voltage.

The ultra small & ultra thin FLP6 package of NJG1533KB2 is applied. Reversed logic version of this device is NJG1523KB2.
