NJG1522KB2

Features: Single low voltage control +2.5~+6.5VLow insertion loss 0.3dB typ. @f=1GHz, Pin=0dBm 0.5dB typ. @f=2GHz, Pin=0dBmHigh isolation 27dB typ. @f=1~2GHz, Pin=0dBmHandling power20dBm max. @f=2GHz, VCTL=2.7VLow current consumption 8uA typ. @f=2GHz, Pin=10dBmUltra small & ultra thin packageF...

product image

NJG1522KB2 Picture
See larger image
SeekIC No. : 004433836 Detail

NJG1522KB2: Features: Single low voltage control +2.5~+6.5VLow insertion loss 0.3dB typ. @f=1GHz, Pin=0dBm 0.5dB typ. @f=2GHz, Pin=0dBmHigh isolation 27dB typ. @f=1~2GHz, Pin=0dBmHandling power20dBm max. @f=2GH...

NJG1522KB2 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJG1522KB2
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Single low voltage control                   +2.5~+6.5V
Low insertion loss                               0.3dB typ. @f=1GHz, Pin=0dBm
                                                            0.5dB typ. @f=2GHz, Pin=0dBm
High isolation                                       27dB typ. @f=1~2GHz, Pin=0dBm
Handling power                                   20dBm max. @f=2GHz, VCTL=2.7V
Low current consumption                    8uA typ. @f=2GHz, Pin=10dBm
Ultra small & ultra thin package           FLP6-B2 (Mount Size: 2.1x2.0x0.75mm)

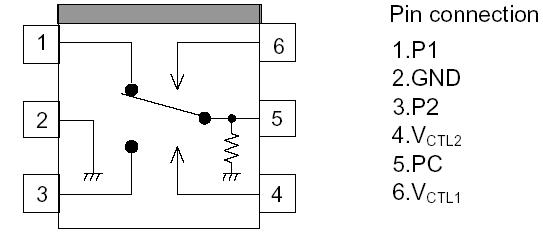

Pinout

Connection Diagram


Specifications

PARAMETER SYMBOL CONDITIONS RATINGS UNITS
Input Power Pin V CTL (L) =0V, V CTL (H) =2.7V 28 dBm
Control Voltage VCTL V CTL (H) - V CTL (L) 7.5 V
Power Dissipation PD   450 mW
Operating Temp. Topr   -30~+85 °C
Storage Temp. Tstg   -55~+125 °C



Description

NJG1522KB2 is a GaAs SPDT switch suited for RF receiving circuit of cellular phone handsets.

This switch of NJG1522KB2 features very low loss, high isolation and exhibits wide operating frequency range from 50MHz to 3.0GHz at low voltage of 2.5V.

The ultra small & ultra thin FLP6 package is applied.
