NJG1521PE1

Features:

* Low voltage operation
* Low current consumption
* Low insertion loss
* Low Adjacent Channel
   Leakage Power
* Ultra small & thin package

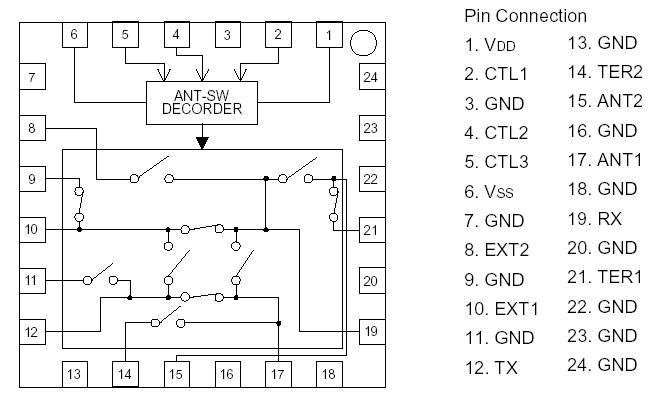

Pinout




Specifications

PARAMETER	SYMBOL	CONDTIONS	RATINGS	UNITS
Supply Voltage 1	VDD	VDD Terminal	6.0	V
Supply Voltage 2	VSS	VSS Terminal	-4.0	V
Control Voltage	VCTL	CTL1, CTL2, CTL3 Terminals	6.0	V
Input Power	Pin	TX, ANT1, EXT1 Terminals VDD=3.5V, VSS=-2.5V	37	dBm
		RX, ANT2, EXT2 Terminals VDD=3.5V, VSS=0.0V	28	dBm
Power Dissipation	PD		600	mW
Operating   Temperature	Topr		-40~+85
Storage   Temperature	Tstg		-55~+125

Description

NJG1521PE1 is an antenna switch IC for a digital cellular phone of 800MHz and 1.5GHz band.

The parallel control signals of three bits connect T/R circuits of NJG1521PE1 to internal two antennas or external two antennas.

The termination ports with external matching circuits make low interference between diversity antennas.

The Ultra small & thin FFP24-E1 package is applied.
