Features:

·Single, low voltage control +2.7V min.
·Handling power 36dBm typ.@f=2GHz, V_CTL=3.0V
·Low insertion loss 0.4dB typ. @f=1GHz, P_in=31dBm, V_CTL=3V
                                0.4dB typ. @f=1GHz, P_in=34.5dBm, V_CTL=3.5V
                                0.55dB typ. @f=2GHz, Pin=31.5dBm, V_CTL=3V
·High isolation 27dB typ.@f=1GHz, P_in=34.5dBm, V_CTL=3.0V
                         25dB typ.@f=2GHz, P_in=31.5dBm, V_CTL=3.0V
·Low current consumption 38uA typ.@f=2GHz, Pin=34.5dBm, V_CTL=3.0V
·Very small package VSP8 (Mount Size: 4.0x2.9x1.2mm)

Pinout

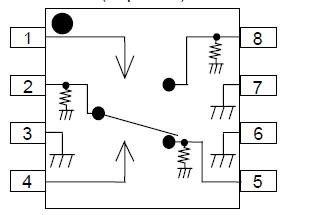

Connection Diagram

Specifications

PARAMETER	SYMBOL	CONDITIONS	RATINGS	UNITS
Input Power	P_in	V_CTL(L)=0V, V_CTL(H)=3.0V	38	dBm
Control Voltage	V_CTL	V_CTL(H)-V_CTL(L)	12	V
Power Dissipation	P_D		320	mW
Operating Temp.	T_opr		-40~+85	°C
Storage Temp.	T_stg		-55~+125	°C

Description

NJG1516R is a GaAs SPDT switch IC suited for antenna switch of cellular phone handset.

NJG1516R features low loss, high isolation at high power, and exhibits wide operating frequency range from 1MHz to 3GHz at low voltage of 2.7V.
