Product Details

Description

Features:

• Integrated Linear Regulator and Charge Pump
• Thermal Limit Protection
• Adjustable Voltage Output
• High Voltage Isolation

Application

• ORing Diodes
• Floating Supervisory Circuits
• LED Driver

Pinout

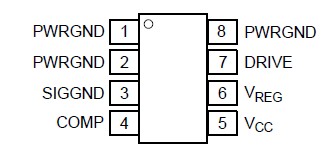

Connection Diagram

Specifications

Rating	Symbol	Value	Unit
Input Voltage, Operating	V_CC	−0.3 to 18	V
Drive Current, Peak	ID_pk	3.0	A
Drive Current, Average	ID_avg	0.05	A
Thermal Resistance, Junction−to−Air 0.1 in2 Copper 0.5 in2 Copper	Q_JA	− −	°C/W
Thermal Resistance, Junction−to−Lead (Pin 1)2	Q_JL	−	°C/W
Power Dissipation @ TA = 25°C SO−8 Leadless	P_max	− −	W
Energy Rating SO−8 Leadless	E_max	−	J
Operating Temperature Range	T_j	−40 to 125	°C
Non−operating Temperature Range	T_j	−55 to 150	°C
Lead Temperature, Soldering (?? Sec)	T_L	−	°C
