NE57811

Features: • Fast transient response time• Overtemperature protection• Overcurrent protection• Commercial (0 °C to +70 °C) temperature range• Reduced need for external components (switching FETs, inductors, decoupling capacitors)• Internal divider maintains termi...

product image

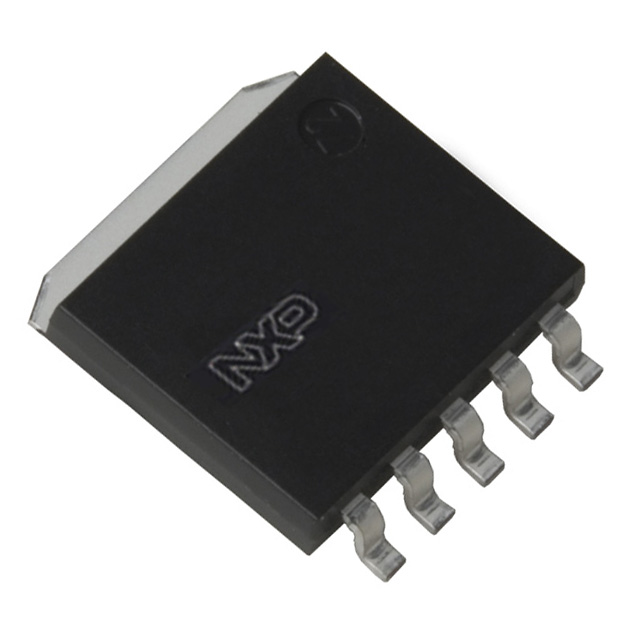

NE57811 Picture
See larger image
SeekIC No. : 004433425 Detail

NE57811: Features: • Fast transient response time• Overtemperature protection• Overcurrent protection• Commercial (0 °C to +70 °C) temperature range• Reduced need for external c...

NE57811 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NE57811
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Fast transient response time
• Overtemperature protection
• Overcurrent protection
• Commercial (0 °C to +70 °C) temperature range
• Reduced need for external components (switching FETs, inductors, decoupling capacitors)
• Internal divider maintains termination voltage at 1/2 memory supply voltage
• Reference out for other memory and control components
• Shutdown pin that may be used to put the device into low power mode
• Compatible with DDR-I (VDD = 2.5 V) or DDR-II (VDD = 1.8 V) SDRAM systems


Application

• Desktop microcomputer systems
• Workstations
• Servers
• Game machines
• Set top boxes
• Embedded systems
• Digital video recorders


Pinout

Connection Diagram


Specifications

SYMBOL                PARAMETER MIN. TYP. MAX. UNIT
VDD VDD to VSS voltage 0.3   +3.6 V
Tamb Operating ambient temperature     +70
Tstg Storage temperature 40   +165
Tj Junction temperature     160
Rth(j-a) Thermal resistance, junction to ambient   16.5   /W
PD Power dissipation (Note 1)     3.3 W



Description

The NE57811 is designed to provide power for termination of a Double Data Rate (DDR) SDRAM memory bus. It significantly reduces parts count, board space, and overall system cost compared to previous solutions.

The NE57811 DDR termination regulator maintains an output voltage (DDR reference bus voltage) that is one-half that of the RAM supply voltage. It is capable of providing up to ±3.5 A for sustained periods. Overcurrent limiting protects the NE57811 from inrush currents at start-up, and overtemperature shutdown protects the device in extreme temperature situations.

The SPAK-5 (SOT756) package is thermally robust for flexibility of thermal design. Because the NE57811 is a linear regulator, no external inductors or switching FETs are necessary. Fast response to load changes reduces the need for output capacitors.
