NE5018

Features: • 8-bit resolution• Input latches• Low-loading data inputs• On-chip voltage reference• Output buffer amplifier• Accurate to ± LSB (0.19%)• Monotonic to 8 bits• Amplifier and reference both short-circuit protected• Compatible with 8085...

product image

NE5018 Picture
See larger image
SeekIC No. : 004433342 Detail

NE5018: Features: • 8-bit resolution• Input latches• Low-loading data inputs• On-chip voltage reference• Output buffer amplifier• Accurate to ± LSB (0.19%)• Monoton...

NE5018 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NE5018
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 8-bit resolution
• Input latches
• Low-loading data inputs
• On-chip voltage reference
• Output buffer amplifier
• Accurate to ± LSB (0.19%)
• Monotonic to 8 bits
• Amplifier and reference both short-circuit protected
• Compatible with 8085, 6800 and many other mPs


Application

• Precision 8-bit D/A converters
• A/D converters
• Programmable power supplies
• Test equipment
• Measuring instruments
• Analog-digital multiplication

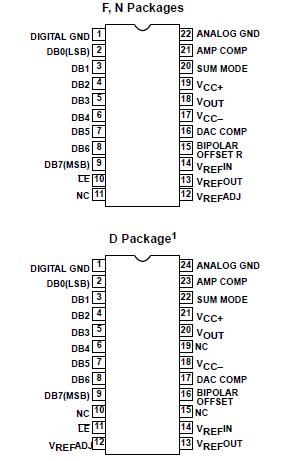

Pinout

Connection Diagram


Specifications

SYMBOL
 PARAMETER
RATING
UNIT
VCC+
 Positive supply voltage
18
V
VCC-
 Negative supply voltage
-18
V
VIN
 Logic input voltage
0 to 18
V
VREF IN
 Voltage at VREF input
12
V
VREF ADJ
 Voltage at VREF adjust
0 to VREF
V
VSUM
 Voltage at sum node
12
V
IREF SC
 Short-circuit current to ground at VREF OUT
Continuous
IOUTSC
 Short-circuit current to ground or either supply at VOUT
Continuous
PD
 Maximum power dissipation, TA=25°C (still-air)1
F package
1740
mW
 N package
2190
mW
 D package
1600
mW
TA
 Operating temperature range
SE5018
-55 to +125
°C
 NE5018
0 to +70
°C
TSTG
 Storage temperature range
-65 to +150
°C
TSOLD
 Lead soldering temperature (10 seconds)
300
°C
NOTES:
1. Derate above 25°C at the following rates:
    F package at 13.9mW/°C
    N package at 17.5mW/°C
    D package at 12.8mW/°C


Description

The NE/SE5018/19 is a complete 8-bit digital-to-analog converter subsystem on one monolithic chip. The data inputs have input latches which are controlled by a latch enable pin. The data and latch enable inputs are ultra-low loading for easy interfacing with all logic systems. The latches appear transparent when the LE input is in the low state. When LE goes high, the input data present at the moment of transition is latched and retained until LE again goes low. NE/SE5018/19 feature allows easy compatibility with most microprocessors.

The NE/SE5018/19 also comprises a stable voltage reference (5V nominal) and high slew rate buffer amplifier. The voltage reference may be externally trimmed with a potentiometer for easy adjustment of full-scale while maintaining a low temperature coefficient.

The output of the buffer amplifier NE/SE5018/19 may be offset so as to provide bipolar as well as unipolar operation.
