Features: • Operation from 3.0 V to 40 V Input• Low Standby Current• Current Limiting• Output Switch Current to 1.5 A• Output Voltage Adjustable• Frequency Operation to 100 kHz• Precision 2% Reference• Pb−Free Packages are AvailablePinoutSpecif...

See larger image

SeekIC No. : 004433110 Detail

NCV33063A: Features: • Operation from 3.0 V to 40 V Input• Low Standby Current• Current Limiting• Output Switch Current to 1.5 A• Output Voltage Adjustable• Frequency Operat...

NCV33063A Data Sheet

Get Latest Price

Part Number:: NCV33063A
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Description

Features:

• Operation from 3.0 V to 40 V Input
• Low Standby Current
• Current Limiting
• Output Switch Current to 1.5 A
• Output Voltage Adjustable
• Frequency Operation to 100 kHz
• Precision 2% Reference
• Pb−Free Packages are Available

Pinout

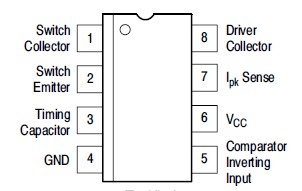

Connection Diagram

Specifications

Rating	Symbol	Value	Unit
Power Supply Voltage	V_CC	40	Vdc
Comparator Input Voltage Range	V_IR	−0.3 to +40	Vdc
Switch Collector Voltage	V_C(switch)	40	Vdc
Switch Emitter Voltage (V_Pin1= 40 V)	V_E(switch)	40	Vdc
Switch Collector to Emitter Voltage	V_CE(switch)	40	Vdc
Driver Collector Voltage	V_C(driver)	40	Vdc
Driver Collector Current (Note 1)	I_C(driver)	100	mA
Switch Current	I_SW	1.5	A
Power Dissipation and Thermal Characteristics
Plastic Package, P, P1 Suffix
T_A = 25°C	P_D	1.25	W
Thermal Resistance	R_JA	100	°C/W
SOIC Package, D Suffix
T_A = 25°C	P_D	625	mW
Thermal Resistance	R_JA	160	°C/W
Operating Junction Temperature	T_J	+150	°C
Operating Ambient Temperature Range	T_A		°C
MC34063A		0 to +70
MC33063AV, NCV33063A		−40 to +125
MC33063A		−40 to +85
Storage Temperature Range	T_stg	−65 to +150	°C

Description

The MC34063A Series is a monolithic control circuit containing the primary functions required for DC−to−DC converters. These MC34063A devices consist of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. This MC34063A series was specifically designed to be incorporated in Step−Down and Step−Up and Voltage−Inverting applications with a minimum number of external components. Refer to Application Notes AN920A/D and AN954/D for additional design information.
