NCP7662

Features: • Wide Operating Voltage Range: 1.5 V to 15 V• Boost Pin (Pin 1) for Higher Switching Frequency• High Power Efficiency is 96%• Easy to Use Requires Only 2 External NonCritical Passive Components• Improved Direct Replacement for Industry Standard ICL7660 and...

product image

NCP7662 Picture
See larger image
SeekIC No. : 004433071 Detail

NCP7662: Features: • Wide Operating Voltage Range: 1.5 V to 15 V• Boost Pin (Pin 1) for Higher Switching Frequency• High Power Efficiency is 96%• Easy to Use Requires Only 2 External...

NCP7662 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NCP7662
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Wide Operating Voltage Range: 1.5 V to 15 V
• Boost Pin (Pin 1) for Higher Switching Frequency
• High Power Efficiency is 96%
• Easy to Use Requires Only 2 External NonCritical Passive
  Components
• Improved Direct Replacement for Industry Standard ICL7660 and
  Other Second Source Devices


Application

• Simple Conversion of +5 V to 5 V Supplies
• Voltage Multiplication VOUT = nVIN
• Negative Supplies for Data Acquisition Systems and Instrumentation
• RS232 Power Supplies
• Supply Splitter, VOUT = VS/2


Pinout

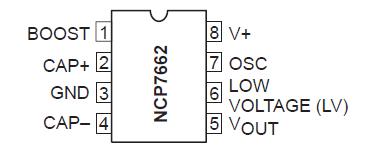

Connection Diagram


Specifications

Rating Symbol Value Unit
Supply Voltage   +16.5 V
LV, Boost and OSC Inputs Voltage (Note 1.)
V+< 5.5 V
> 5.5 V		   0.3 V to (V+ + 0.3 V)
(V+ 5.5 V) to (V+ + 0.3 V)		 V
Current into LV (Note 1.)
V+ >3.5 V		   20 mA
Output Short Duration
(VSUPPLY > 5.5 V)		   Continuous V
Power Dissipation (Note 2.)
Plastic DIP
SO		   730
470		 mW
Operating Temperature Range   40 to +85 °C
Storage Temperature Range   65 to +150 °C
Lead Temperature (Soldering, 10 sec)   +300 °C



Description

The NCP7662 is a pincompatible upgrade to the industry standard TC7660 charge pump voltage converter. NCP7662 converts a +1.5 V to +15 V input to a corresponding 1.5 to 15 V output using only two lowcost capacitors, eliminating inductors and their associated cost, size and EMI.

The onboard oscillator operates at a nominal frequency of 10 kHz. Frequency is increased to 35 kHz when pin 1 is connected to V+, allowing the use of smaller external capacitors. Operation below 10 kHz (for lower supply current applications) is also possible by connecting an external capacitor from OSC to ground (with pin 1 open).The NCP7662 is available in both 8pin DIP and 8pin small outline (SO) packages in commercial and extended temperature ranges.
