NCP699

Features: • Enable Control (Active High, Supports Sub 1−Volt Logic)• Very Low Ground Current of 40 A Typical• Low Dropout Voltage of 340 mV at 150 mA, and 3.0 V Vout• Multiple Fixed Output Voltage Option• Output Voltage Accuracy of 2.0%• Operating Tempera...

product image

NCP699 Picture
See larger image
SeekIC No. : 004433069 Detail

NCP699: Features: • Enable Control (Active High, Supports Sub 1−Volt Logic)• Very Low Ground Current of 40 A Typical• Low Dropout Voltage of 340 mV at 150 mA, and 3.0 V Vout• ...

NCP699 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NCP699
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Enable Control (Active High, Supports Sub 1−Volt Logic)
• Very Low Ground Current of 40 A Typical
• Low Dropout Voltage of 340 mV at 150 mA, and 3.0 V Vout
• Multiple Fixed Output Voltage Option
• Output Voltage Accuracy of 2.0%
• Operating Temperature Range of −40°C to 85°C
• Stable with 1 F Ceramic or Tantalum Capacitors
• These are Pb−Free Devices


Application

• Cellular Phones
• Battery Powered Consumer Products
• Hand−Held Instruments
• Camcorders and Cameras
• Printers and Office Equipment


Pinout

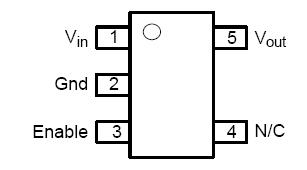

Connection Diagram


Specifications

Rating Symbol Value Unit
Input Voltage Vin 2.1 to 6.0 V
Enable Voltage Enable −0.3 to Vin +0.3 V
Output Voltage Vout −0.3 to Vin +0.3 V
Power Dissipation PD Internally Limited W
Operating Junction Temperature TJ −40 to +125 °C
Operating Ambient Temperature TA −40 to +85 °C
Storage Temperature Tstg −55 to +150 °C



Description

The NCP699 series of fixed output LDO's are designed for handheld communication equipment and portable battery powered applications which require low quiescent. The NCP699 series features a very low ground current of 40 A, independent of load current. Each device contains a voltage reference unit, an error amplifier, a PMOS power transistor, internal resistors for setting output voltage, current limit, and temperature limit protection circuits.

The NCP699 has been designed to be used with low cost capacitors. The device is housed in the micro−miniature TSOP−5 surface mount package. Standard voltage versions are 1.5, 1.8, 2.5, 2.8, 3.0, 3.3, and 5.0 V. Other voltages are available in 100 mV steps.
