NCP4672

Features: • Accuracy: 2% at Full Voltage and Load• Excellent Ripple Rejection: 70 dB @ 1 kHz• Voltage Detector for Input Voltage• Voltage Detector for Output Voltage• Programmable Delay of Reset Signal• Thermal Short Circuit Protection• This is a Pb−...

product image

NCP4672 Picture
See larger image
SeekIC No. : 004433014 Detail

NCP4672: Features: • Accuracy: 2% at Full Voltage and Load• Excellent Ripple Rejection: 70 dB @ 1 kHz• Voltage Detector for Input Voltage• Voltage Detector for Output Voltage• P...

NCP4672 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NCP4672
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Accuracy: 2% at Full Voltage and Load
• Excellent Ripple Rejection: 70 dB @ 1 kHz
• Voltage Detector for Input Voltage
• Voltage Detector for Output Voltage
• Programmable Delay of Reset Signal
• Thermal Short Circuit Protection
• This is a Pb−Free Device


Application

• Small Core and I/O Power
• Consumer Equipment
• Measurement Equipment
• Industrial Equipment

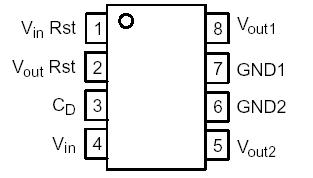

Pinout

Connection Diagram


Specifications

Rating Symbol Value Unit
Input Voltage Vinmax −0.3 ~ 18 V
Output Voltage Vout −0.3 to Vin + 0.3 V
Output Current 1
Output Current 2		 Iout1max
Iout2max		 30
80		 mA
mA
Output Short Circuit Duration − Infinite −
Power Dissipation and Thermal Characteristics − SOIC−8
Power Dissipation
Thermal Resistance, Junction−to−Ambient
Minimum Pad Size
200 mm2 Pad Size (Note 1)
Thermal Resistance, Junction−to−Case		 PD
RJA
RJC		 Internally Limited
190
160
25		 W
°C/W
°C/W
°C/W
Operating Junction Temperature Range Tstg −40 to 125 °C
Storage Temperature Range Tsolder −55 to +150 °C



Description

The NCP4672 is a dual linear voltage regulator with input voltage and output voltage detectors. This part is useful in systems where multiple voltages are required such as for core and I/O. The NCP4672 is very accurate at 2% over full input voltage and full load current. The NCP4672 eliminates the need for external voltage supervision due to the two built in voltage detectors. The voltage detector on the input is set to 7.0 V. The output voltage detector is for channel 1 and is set to 2.9 V. An external capacitor is used to set the duration of this reset signal. Other features include short circuit protection and thermal shutdown protection. The NCP4672 has been designed to work with a 4.7 F output capacitor having an ESR between 0.1 and 5.0
