NCP2860

Features: • High Output Current (300 mA Max)• Low Output Voltage Noise: 60 Vrms• Low Dropout (150 mV @ Iout = 300 mA)• Thermal Overload and Short Circuit Protections• Very Low Consumption in Shutdown Mode (10 nA)• High Power Supply Rejection Ratio (60 dB @ 1.0 ...

product image

NCP2860 Picture
See larger image
SeekIC No. : 004432989 Detail

NCP2860: Features: • High Output Current (300 mA Max)• Low Output Voltage Noise: 60 Vrms• Low Dropout (150 mV @ Iout = 300 mA)• Thermal Overload and Short Circuit Protections• ...

NCP2860 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NCP2860
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High Output Current (300 mA Max)
• Low Output Voltage Noise: 60 Vrms
• Low Dropout (150 mV @ Iout = 300 mA)
• Thermal Overload and Short Circuit Protections
• Very Low Consumption in Shutdown Mode (10 nA)
• High Power Supply Rejection Ratio (60 dB @ 1.0 kHz)
• FAULT Indicator
• Programmable Output Voltage
• Soft Start


Application

• Cellular Phone
• Handheld Instruments


Pinout

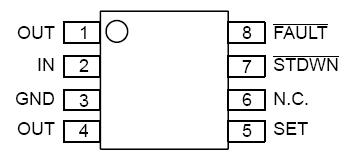

Connection Diagram


Specifications

Rating Symbol Value Unit
Input Voltage, Shutdown Pin, Voltage Range (Note 1) Vinmax -0.3, +6.0 V
Thermal Resistance (Note 2 - 230 °C/W
Maximum Junction Temperature TJmax 150 °C
Storage Temperature Range TSmax - 65 to +150 °C
Lead Temperature (Soldering, 10s) TLmax 300 °C
ESD Capability
Human Body Model
Machine Model		   2.0
200		 kV
V
Latch-up Capability @ 85°C   +/-100 mA
1. The recommended input voltage range for NCP2860 proper operation is 2.7 V to 6.0 V.
2. Circuit being mounted on a board that has no metal oxide traces attached to the leads. The addition of plated copper can lower the thermal resistance.


Description

The NCP2860 is a low noise, low dropout linear regulator that is offered with an output voltage of 2.77 V. It supplies 300 mA from 3.0 V to 6.0 V input. If wished, the "SET'' pin enables to adjust the output voltage level that then depends on the voltage applied to this pin. The excellent performances that the NCP2860 features in terms of transient responses, PSRR and noise, make it an ideal solution for audio applications (e.g. audio amplifier drivers).
