NCP1651

Features: • Fixed Frequency Operation• Average Current Mode PWM• Internal High Voltage Start−Up Circuit• Continuous or Discontinuous Mode Operation• High Accuracy Multiplier• Overtemperature Shutdown• External Shutdown• Undervoltage LockoutR...

product image

NCP1651 Picture
See larger image
SeekIC No. : 004432983 Detail

NCP1651: Features: • Fixed Frequency Operation• Average Current Mode PWM• Internal High Voltage Start−Up Circuit• Continuous or Discontinuous Mode Operation• High Accuracy...

NCP1651 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NCP1651
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Fixed Frequency Operation
• Average Current Mode PWM
• Internal High Voltage Start−Up Circuit
• Continuous or Discontinuous Mode Operation
• High Accuracy Multiplier
• Overtemperature Shutdown
• External Shutdown
• Undervoltage Lockout
• Low Cost/Parts Count Solution
• Ramp Compensation Does Not Affect Oscillator Accuracy


Application

• High Current Battery Chargers
• Front Ends for Distributed Power Systems


Pinout

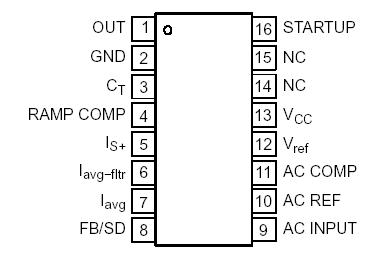

Connection Diagram


Specifications

Rating Symbol Value Unit
Power Supply Voltage (Operating)
Output (Pin 1)		 VCC −0.3 to 18 V
Current Sense Amplifier Input (Pin 5) V(IS+ ) −0.3 to 1.0 V
FB/SD Input (Pin 8) V FB/SD −0.3 to 11 V
CT Input (Pin 3) VCT −0.3 to 4.5 V
Line Voltage Vstartup −0.3 to 500 V
All Other Pins   −0.3 to 6.5 V
Thermal Resistance, Junction−to−Air
0.1 in2 Copper
0.5 in2 Copper		 JA
130
110		 °C/W
Thermal Resistance, Junction−to−Lead JL 50 °C/W
Maximum Power Dissipation @ TA = 25°C Pmax 0.77 W
Operating Temperature Range Tj −40 to 125 °C
Non−operating Temperature Range Tj −55 to 150 °C
