NCN6010

Features: • Supports 3.0 V or 5.0 V Operating SIM Card• Builtin Pull Up Resistor for I/O Pin in Both Directions• All Pins are Fully ESD Protected, According to GSM Specification• Supports 10 MHz Clock• 6.0 kV ESD Proof on SIM Card PinsApplication• Cellular Phone...

product image

NCN6010 Picture
See larger image
SeekIC No. : 004432913 Detail

NCN6010: Features: • Supports 3.0 V or 5.0 V Operating SIM Card• Builtin Pull Up Resistor for I/O Pin in Both Directions• All Pins are Fully ESD Protected, According to GSM Specification...

NCN6010 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NCN6010
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Supports 3.0 V or 5.0 V Operating SIM Card
• Builtin Pull Up Resistor for I/O Pin in Both Directions
• All Pins are Fully ESD Protected, According to GSM Specification
• Supports 10 MHz Clock
• 6.0 kV ESD Proof on SIM Card Pins




Application

• Cellular Phone SIM Interface
• Identification Module

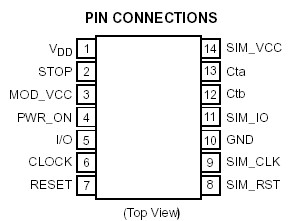

Pinout

Connection Diagram


Specifications

Rating
Symbol
Value
Unit
Power Supply
VDD
7.0
V
External Card Power Supply and Level Shifter
SIM_VCC
7.0
V
Digital Input Voltage
Digital Input Current
STOP
0.3  V  VDD 1.0
V
mA
Digital Input Voltage
Digital Input Current
RESET
0.3  V  VDD 1.0
V
mA
Digital Input Voltage
Digital Input Current
CLOCK
0.3  V  VDD 1.0
V
mA
Digital Input Voltage
Digital Input Current
I/O
0.3  V  VDD 1.0
V
mA
Digital Output Voltage
Digital Output Current
SIM_RST
0.3  V  SIM_VCC 25
V
mA
Digital Input/Output Voltage
Digital Input/Output Current
SIM_I/O
0.3  V  SIM_VCC 25
V
mA
Digital Output Voltage
Digital Output Current
SIM_CLK
0.3  V  SIM_VCC 50
V
mA
Human Body Model: R = 1500 , C = 100 pF
SIM card side, pins 8, 9, 11 & 14
All other pins
ESD
6.0
2.0
kV
kV
TSSOP14 Package
Power Dissipation @ TA = +85°C
Thermal Resistance Junction to Air
PD
RTHhja
275
145
mW
/W
Operating Ambient Temperature Range
TA
25 to +85
Operating Junction Temperature Range
TJ
25 to +125
Maximum Junction Temperature
TJmax
+150
Storage Temperature Range
Tstg
65 to +150
1. Maximum electrical ratings are defined as those values beyond which damage to the device may occur at TA = +25°C.


Description

The NCN6010 is a level shifter analog circuit designed to translate the voltages between a SIM Card and an external microcontroller. A builtin DC/DC converter makes the NCN6010 useable to drive any type of SIM card.

The NCN6010 fulfills the GSM 11.11 specification. The external MPU has an access to a dedicated input STOP pin, providing a way to switch off the power applied to the SIM card in case of failure or when the card is removed.
