Voltage - Supply: 1.65 V ~ 5.5 V
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Number of Inputs: 2
Current - Quiescent (Max): 1µA
Logic Type: NAND Gate
Features: Open Drain
Current - Output High, Low: -, 32mA
Logic Level - Low: -
Logic Level - High: -
Number of Circuits: 2
Packaging: Tape & Reel (TR)
Max Propagation Delay @ V, Max CL: 3.4ns @ 5V, 50pF
Manufacturer: Fairchild Semiconductor
Series: 7WZ

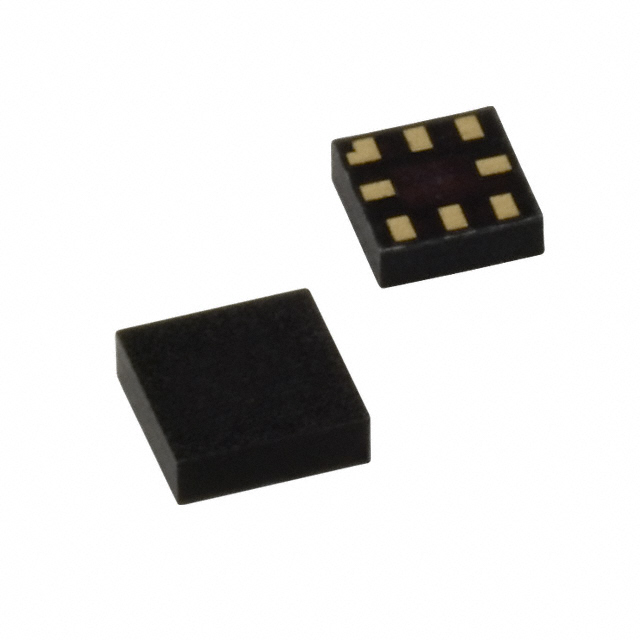

Supplier Device Package: 8-MicroPak?
Package / Case: 8-XFQFN
Pinout
DescriptionThe NC7WZ38L8X is one member of the NC7WZ38 family which is designed as the dual 2-input NAND gate that is fabricated with advanced CMOS technology, so this device can achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range, and is specified to operate over the 1.65 V to 5.5 V Vcc range.
Features of the NC7WZ38L8X are:(1)Space saving US8 surface mount package; (2)MicroPak. Pb-Free leadless package; (3)Ultra High Speed: tPD 2.2ns typ into 50pF at 5V VCC; (4)High Output Drive: ±24mA at 3V VCC; (5)Broad VCC Operating Range: 1.65 V to 5.5 V; (6)Matches the performance of LCX when operated at 3.3 V Vcc; (7)Power down high impedance inputs/output; (8)Overvoltage tolerant inputs facilitate 5V to 3V translation; (9)Patented noise/EMI reduction circuitry implemented; (10)Schmitt trigger inputs are tolerant of slow changing input signals.
The absolute maximum ratings of the NC7WZ38L8X can be summarized as:(1)Supply Voltage: -0.5 V to +7 V;(2)DC Input Voltage: -0.5 V to +7 V;(3)DC Output Voltage: -0.5 V to +7 V;(4)DC Input Diode Current @ VIN -0.5V: -50 mA;(5)DC Output Diode Current @ VOUT -0.5V: -50 mA;(6)DC Output Current: ±50 mA;(7)DC VCC/GND Current: ±100 mA;(8)Storage Temperature: -65°C to +150°C;(9)Junction Temperature under Bias: 150°C;(10)Junction Lead Temperature (Soldering, 10 seconds): 260°C;(11)Power Dissipation @ +85°C: 250 mW. If you want to know more information of NC7WZ38L8X such as the electrical characteristics about it, please download the datasheet in www.seekic.com or www.chinaicmart.com.
Parameters: | Technical/Catalog Information | NC7WZ38L8X |
| Vendor | Fairchild Semiconductor |
| Category | Integrated Circuits (ICs) |
| Number of Circuits | 2 - Dual |
| Package / Case | 8-MicroPak? |
| Logic Type | NAND Gate |
| Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Number of Inputs | 2 |
| Current - Output High, Low | 32mA, 32mA |
| Supply Voltage | 1.65 V ~ 5.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.65 V ~ 5.5 V |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | NC7WZ38L8X
