NC7SZ125

Features: · Space saving SOT23 or SC70 5-lead package· Ultra small MicroPakTM leadless package· Ultra High Speed; tPD 2.6 ns Typ into 50 pF at 5V VCC· High Output Drive; ±24 mA at 3V VCC· Broad VCC Operating Range; 1.65V to 5.5V· Matches the performance of LCX when operated at 3.3V VCC· Power down...

product image

NC7SZ125 Picture
See larger image
SeekIC No. : 004432835 Detail

NC7SZ125: Features: · Space saving SOT23 or SC70 5-lead package· Ultra small MicroPakTM leadless package· Ultra High Speed; tPD 2.6 ns Typ into 50 pF at 5V VCC· High Output Drive; ±24 mA at 3V VCC· Broad VCC ...

NC7SZ125 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NC7SZ125
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Space saving SOT23 or SC70 5-lead package
· Ultra small MicroPakTM leadless package
· Ultra High Speed; tPD 2.6 ns Typ into 50 pF at 5V VCC
· High Output Drive; ±24 mA at 3V VCC
· Broad VCC Operating Range; 1.65V to 5.5V
· Matches the performance of LCX when operated at 3.3V VCC
· Power down high impedance inputs/output
· Overvoltage Tolerant inputs facilitate 5V to 3V translation
· Patented noise/EMI reduction circuitry implemented

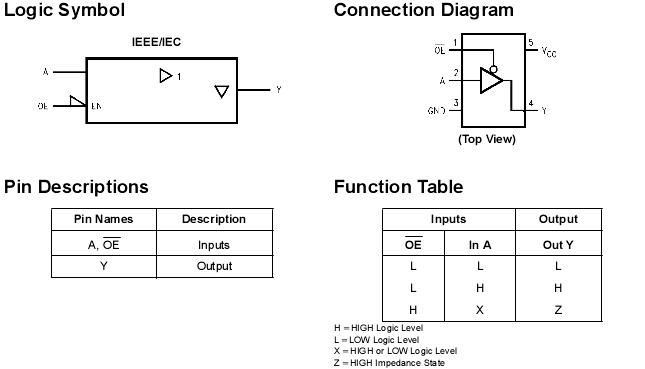

Pinout






Specifications

Supply Voltage (VCC) .....................−0.5V to +6V
DC Input Voltage (VIN) ....................−0.5V to +6V
DC Output Voltage (VOUT) ..................−0.5V to +6V
DC Input Diode Current (IIK)
@VIN < −0.5V ...........................−50 mA
@ VIN > 6V ............................+20 mA
DC Output Diode Current (IOK)
@VOUT < −0.5V ..........................−50 mA
@ VOUT > 6V, VCC = GND .....................+20 mA
DC Output Current (IOUT) .....................± 50 mA
DC VCC/GND Current (ICC/IGND).................. ± 50 mA
Storage Temperature (TSTG) ..............−65°C to +150°C
Junction Temperature under Bias (TJ) ................150°C
Junction Lead Temperature (TL);
(Soldering, 10 seconds) .......................260°C
Power Dissipation (PD) @ +85°C
SOT23-5 ..............................200 mW
SC70-5 ...............................150 mW




Description

The NC7SZ125 is a single buffer with 3-STATE output from Fairchild's Ultra High Speed Series of TinyLogicTM. The NC7SZ125 is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The device is specified to operate over the 1.65V to 5.5V range.

The inputs and output of NC7SZ125 are high impedance above ground when VCC is 0V. Inputs tolerate voltages up to 6V independent of VCC operating voltage. The output tolerates voltages above VCC when in the 3-STATE condition.
