Product Details

Description



Features:

· Space saving SOT23 or SC70 5-lead package
· Ultra High Speed; tPD 2.4 ns typ into 50 pF at 5V VCC
·High Output Drive; ±24 mA at 3V VCC
· Broad VCC Operating Range; 1.8V to 5.5V
· Matches the performance of LCX when operated at 3.3V VCC
· Power down high impedance inputs/output
· Overvoltage tolerant inputs facilitate 5V to 3V translation
· Patented noise/EMI reduction circuitry implemented

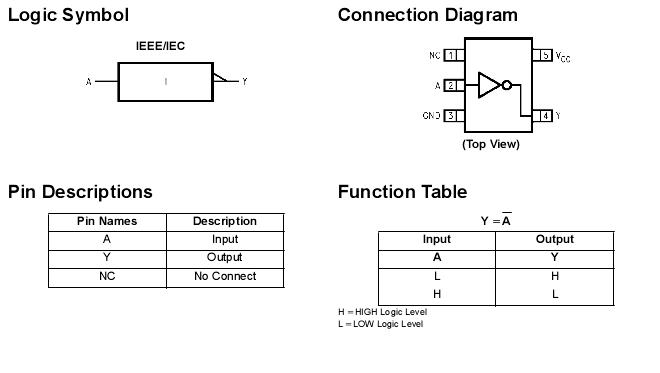

Pinout






Specifications

Supply Voltage (VCC) ......................−0.5V to +6V
DC Input Voltage (VIN).....................−0.5V to +6V
DC Output Voltage (VOUT) ...................−0.5V to +6V
DC Input Diode Current (IIK)
@VIN < −0.5V.............................−50 mA
@ VIN > 6V..............................+20 mA
DC Output Diode Current (IOK)
@VOUT < −0.5V ............................−50 mA
@ VOUT > 6V, VCC = GND.......................+20 mA
DC Output Current (IOUT) ±50 mA
DC VCC/GND Current (ICC/IGND) ...................±50 mA
Storage Temperature (TSTG) ...............−65°C to +150°C
Junction Temperature under Bias (TJ) .................150°C
Junction Lead Temperature (TL)
(Soldering, 10 seconds) ........................260°C
Power Dissipation (PD) @ +85°C
SOT235 ...............................200 mW
SOT705............................... 150 mW




Description

The NC7SZ04 is a single inverter from Fairchild's Ultra High Speed Series of TinyLogicTM. The NC7SZ04 is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The NC7SZ04 is specified to operate over the 1.8V to 5.5V VCC range. The inputs and output are high impedance when VCC is 0V. Inputs tolerate voltages up to 6V independent of VCC operating voltage.
