NC7SZ00

Features: ` Space saving SOT23 or SC70 5-lead package` Ultra High Speed; tPD 2.4 ns typ into 50 pF at 5V VCC` High Output Drive; ±24 mA at 3V VCC` Broad VCC Operating Range; 1.8V5.5V` Matches the performance of LCX when operated at 3.3V VCC` Power down high impedance inputs/output` Overvoltage tol...

product image

NC7SZ00 Picture
See larger image
SeekIC No. : 004432828 Detail

NC7SZ00: Features: ` Space saving SOT23 or SC70 5-lead package` Ultra High Speed; tPD 2.4 ns typ into 50 pF at 5V VCC` High Output Drive; ±24 mA at 3V VCC` Broad VCC Operating Range; 1.8V5.5V` Matches the pe...

NC7SZ00 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NC7SZ00
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Space saving SOT23 or SC70 5-lead package
` Ultra High Speed; tPD 2.4 ns typ into 50 pF at 5V VCC
` High Output Drive; ±24 mA at 3V VCC
` Broad VCC Operating Range; 1.8V5.5V
` Matches the performance of LCX when operated at 3.3V VCC
` Power down high impedance inputs/output
` Overvoltage tolerant inputs facilitate 5V to 3V translation
` Patented noise/EMI reduction circuitry implemented




Pinout

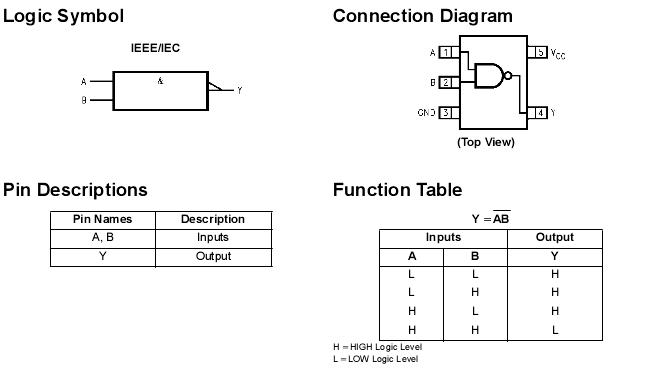

Connection Diagram




Specifications

Supply Voltage (VCC) ....................−0.5V to +6V
DC Input Voltage (VIN)...................−0.5V to +6V
DC Output Voltage (VOUT).................−0.5V to +6V
DC Input Diode Current (IIK)
@VIN < −0.5V .......................... −50 mA
@ VIN > 6V ...........................+20 mA
DC Output Diode Current (IOK)
@VOUT < −0.5V .........................−50 mA
@ VOUT > 6V, VCC = GND .................... +20 mA
DC Output Current (IOUT) ...................± 50 mA
DC VCC/GND Current (ICC/IGND) ................± 50 mA
Storage Temperature (TSTG) .............−65°C to +150°C
Junction Temperature under Bias (TJ) .............. 150°C
Junction Lead Temperature (TL);
(Soldering, 10 seconds) ......................260°C
Power Dissipation (PD) @ +85°C
SOT235 .............................200 mW
SC705 .............................150 mW



Product Product status Eco Status Pricing* Package type Leads Packing method Package Drawing Package Marking Convention**
NC7SZ00FHX Preliminary Green N/A MicroPAK2 6 TAPE REEL Line 1: YY
NC7SZ00L6X Full Production RoHS Compliant $0.139 MicroPak 6 TAPE REEL Line 1: YY
NC7SZ00M5X Full Production RoHS Compliant $0.072 SOT-23 5 TAPE REEL Line 1: &E&E&Y (Binary Calendar Year Coding)
Line 2: &O7Z00&C Line 3: &.&O&E&V
NC7SZ00P5X Full Production RoHS Compliant $0.055 SC70 5 TAPE REEL Line 1: &E&Y (Binary Calendar Year Coding)
Line 2: &OZ00&C Line 3: &.&O&V
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product NC7SZ00 is available. Click here for more information .





Description

The NC7SZ00 is a single 2-Input NAND Gate from Fairchild's Ultra High Speed Series of TinyLogicTM. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range. The NC7SZ00 is specified to operate over the 1.8V to 5.5V VCC operating range. The inputs and output are high impedance when VCC is 0V. Inputs tolerate voltages up to 6V independent of VCC operating voltage.
