NC7SU04

Features: `Space saving SOT23 or SC70 5-lead package` Unbuffered for crystal oscillator applications` Low Quiescent Power; ICC < 1 A` Balanced Output Drive; 2 mA IOL, −2 mA IOH` Broad VCC Operating Range; 2V6V` Balanced Propagation Delays` Specified for 3V operationPinoutSpecificationsSup...

product image

NC7SU04 Picture
See larger image
SeekIC No. : 004432805 Detail

NC7SU04: Features: `Space saving SOT23 or SC70 5-lead package` Unbuffered for crystal oscillator applications` Low Quiescent Power; ICC < 1 A` Balanced Output Drive; 2 mA IOL, −2 mA IOH` Broad VCC O...

NC7SU04 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NC7SU04
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Space saving SOT23 or SC70 5-lead package
` Unbuffered for crystal oscillator applications
` Low Quiescent Power; ICC < 1 A
` Balanced Output Drive; 2 mA IOL, −2 mA IOH
` Broad VCC Operating Range; 2V6V
` Balanced Propagation Delays
` Specified for 3V operation




Pinout

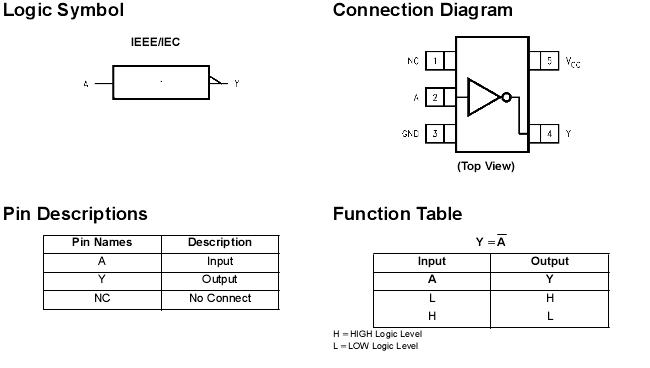

Connection Diagram




Specifications

Supply Voltage (VCC) .......................−0.5V to +7.0V
DC Input Diode Current (IIK)
@ VIN −0.5V ..............................−20 mA
@ VIN VCC +0.5V ...........................+20 mA
DC Input Voltage (VIN) ...................−0.5V to VCC + 0.5V
DC Output Diode Current (IOK)
@ VOUT < −0.5V .............................−20 mA
@ VOUT > VCC +0.5V ...........................+20 mA
DC Output Voltage (VOUT).................. −0.5V to VCC + 0.5V
DC Output Source
or Sink Current (IOUT) ..........................±12.5 mA
DC VCC or Ground Current
per Output Pin (ICC or IGND) ........................±25 mA
Storage Temperature (TSTG) ..................−65°C to +150°C
Junction Temperature (TJ) .........................150°C
Lead Temperature (TL);
(Soldering, 10 seconds) ...........................260°C



Product Product status Eco Status Pricing* Package type Leads Packing method Package Drawing Package Marking Convention**
NC7SU04L6X Full Production RoHS Compliant $0.145 MicroPak 6 TAPE REEL Line 1: E5
NC7SU04M5X Full Production RoHS Compliant $0.072 SOT-23 5 TAPE REEL Line 1: &E&E&Y (Binary Calendar Year Coding)
Line 2: &O7SU4&C Line 3: &.&O&E&V
NC7SU04P5X Full Production RoHS Compliant $0.055 SC70 5 TAPE REEL Line 1: &E&Y (Binary Calendar Year Coding)
Line 2: &OSU4&C Line 3: &.&O&V
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product NC7SU04 is available. Click here for more information .





Description

The NC7SU04 is a single special purpose CMOS Inverter. The NC7SU04  inverter circuit is designed with a single unbuffered stage to facilitate use in crystal oscillator applications. It is not intended for use in logic inversion applications.Advanced Silicon Gate CMOS fabrication assures high speed and low power circuit operation over a broad VCC range. ESD protection diodes inherently guard both input and output with respect to the VCC and GND rails.
