Product Details

Description

Features:

`Space saving SOT23 or SC70 5-lead package
` High Speed; t_PD <7 ns typ, V_CC= 5V, C_L = 15 pF
` Low Quiescent Power; I_CC <1 A typ, V_CC = 5.5V
` Balanced Output Drive; 2 mA I_OL, −2 mA I_OH
` TTL-compatible inputs

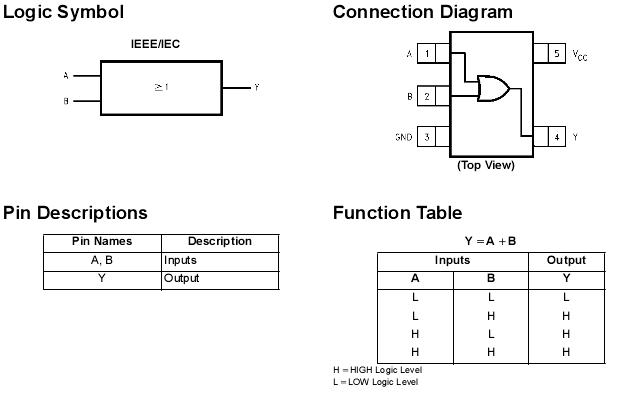

Pinout

Connection Diagram

Specifications

Supply Voltage (V_CC) ......................−0.5V to +7.0V
DC Input Diode Current (I_IK)
V_IN < −0.5V ...............................−20 mA
V_IN V_CC + 0.5V ............................+20 mA
DC Input Voltage (V_IN) ...................−0.5V to V_CC +0.5V
DC Output Diode Current (I_OK)
V_OUT < −0.5V ..............................−20 mA
V_OUT > V_CC + 0.5V ...........................+20 mA
Output Voltage (V_OUT) ...................−0.5V to V_CC +0.5V
DC Output Source or Sink
Current (I_OUT) ............................±12.5 mA
DC V_CC or Ground Current per
Supply Pin (I_CCor I_GND) ........................±25 mA
Storage Temperature (T_STG) ................−65°C to +150°C
Junction Temperature (T_J) ........................150°C
Lead Temperature (T_L);
(Soldering, 10 seconds) ......................... 260°C
Power Dissipation (P_D) @+85°C
SOT23-5................................. 200 mW
SC70-5 .................................150 mW

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Marking Convention**
NC7ST32L6X	Full Production	RoHS Compliant	$0.153	MicroPak	6	TAPE REEL	Line 1: D7
NC7ST32M5X	Full Production	RoHS Compliant	$0.072	SOT-23	5	TAPE REEL	Line 1: &E&E&Y (Binary Calendar Year Coding) Line 2: &O8S32&C Line 3: &.&O&E&V
NC7ST32P5X	Full Production	RoHS Compliant	$0.055	SC70	5	TAPE REEL	Line 1: &E&Y (Binary Calendar Year Coding) Line 2: &OT32&C Line 3: &.&O&V

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product NC7ST32 is available. Click here for more information .

Description

The NC7ST32 is a single 2-Input high performance CMOS OR Gate, with TTL-compatible inputs. Advanced Silicon Gate CMOS fabrication assures high speed and low power circuit operation. ESD protection diodes inherently guard both inputs and output with respect to the V_CC and GND rails. High gain circuitry offers high noise immunity and reduced sensitivity to input edge rate. The TTL-compatible inputs facilitate TTL to NMOS/CMOS interfacing. Device performance of NC7ST32 is similar to MM74HCT but with ½ the output current drive of HC/HCT.
