Product Details

Description



Features:

`Space saving SOT23 or SC70 5-lead package
` High Speed; tPD <7 ns typ, VCC = 5V, CL = 15 pF
` Low Quiescent Power; ICC <1 A typ, VCC = 5.5V
`Balanced Output Drive; 2 mA IOL, −2 mA IOH
` TTL-compatible inputs


Pinout

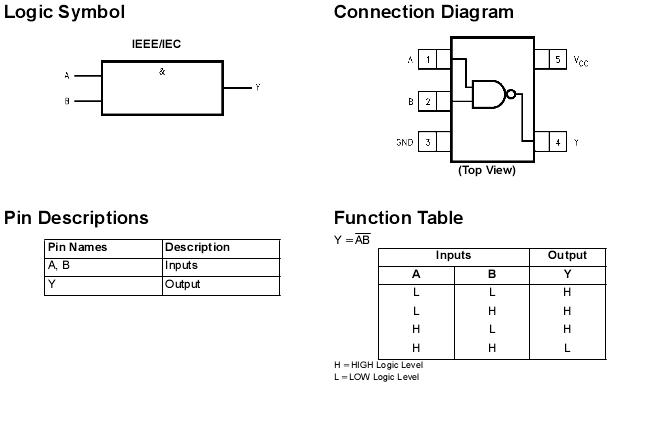

Connection Diagram


Specifications

Supply Voltage (VCC) ....................−0.5V to +7.0V
DC Input Diode Current (lIK)
VIN < −0.5V .............................−20 mA
VIN VCC + 0.5V ..........................+20 mA
DC Input Voltage VIN..................−0.5V to VCC + 0.5V
DC Output Diode Current (IOK)
VOUT < −0.5V  ............................−20 mA
VOUT > VCC +0.5V ..........................+20 mA
Output Voltage (VOUT) .................−0.5V to VCC + 0.5V
DC Output Source or
Sink Current (IOUT)  ........................±12.5 mA
DC VCC or Ground Current per
Supply Pin (ICC or IGND)  .......................±25 mA
Storage Temperature (TSTG)  ...............−65°C to +150°C
Junction Temperature (TJ) .......................150°C
Lead Temperature (TL);
(Soldering, 10 seconds) ........................ 260°C
Power Dissipation (PD) @ +85°C
SOT23-5 ................................200 mW
SC70-5  ................................ 150 mW


Description

The NC7ST00 is a single 2-Input high performance CMOS NAND Gate, with TTL-compatible inputs. Advanced Silicon Gate CMOS fabrication assures high speed and low power circuit operation. ESD protection diodes inherently guard both inputs and output with respect to the VCC and GND rails. High gain circuitry offers high noise immunity and reduced sensitivity to input edge rate. The TTL-compatible inputs facilitate TTL to NMOS/CMOS interfacing. Device performance of NC7ST00 is similar to MM74HCT but with 1/2 the output current drive of HC/HCT
