NC7S04

Features: ` Space saving SOT23 or SC70 5-lead package` High Speed: tPD = 3 ns typ` Low Quiescent Power: ICC < 1 A` Balanced Output Drive: 2 mA IOL, −2 mA IOH` Broad VCC Operating Range: 2V 6V` Balanced Propagation Delays` Specified for 3V operationPinoutSpecificationsSupply Voltage (VCC)...

product image

NC7S04 Picture
See larger image
SeekIC No. : 004432769 Detail

NC7S04: Features: ` Space saving SOT23 or SC70 5-lead package` High Speed: tPD = 3 ns typ` Low Quiescent Power: ICC < 1 A` Balanced Output Drive: 2 mA IOL, −2 mA IOH` Broad VCC Operating Range: 2V ...

NC7S04 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NC7S04
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Space saving SOT23 or SC70 5-lead package
` High Speed: tPD = 3 ns typ
` Low Quiescent Power: ICC < 1 A
` Balanced Output Drive: 2 mA IOL, −2 mA IOH
` Broad VCC Operating Range: 2V 6V
` Balanced Propagation Delays
` Specified for 3V operation

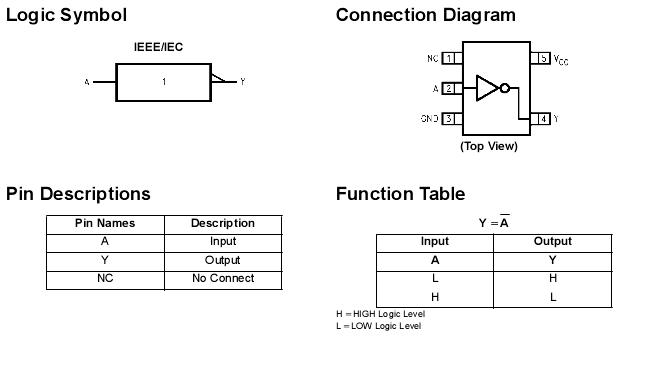

Pinout






Specifications

Supply Voltage (VCC) ......................−0.5V to +7.0V
DC Input Diode Current (IIK)
@VIN −0.5V ............................. −20 mA
@VIN VCC + 0.5V .......................... +20 mA
DC Input Voltage (VIN) ..................−0.5V to VCC +0.5V
DC Output Diode Current (IOK)
@VOUT −0.5V ............................−20 mA
@VOUT VCC + 0.5V .........................+20 mA
DC Output Voltage (VOUT) ................−0.5V to VCC +0.5V
DC Output Source or Sink
Current (IOUT) ............................±12.5 mA
DC VCC or Ground Current per
Output Pin (ICC or IGND) ........................ ±25 mA
Storage Temperature (TSTG) ................−65°C to +150°C
Junction Temperature (TJ)........................ 150°C
Lead Temperature (TL)
(Soldering, 10 seconds) .........................260°C
Power Dissipation (PD) @ +85°C
SOT23-5 ................................200 mW
SC70-5 .................................150 mW




Description

The NC7S04 is a single high performance CMOS Inverter. Advanced Silicon Gate CMOS fabrication in NC7S04 assures high speed and low power circuit operation over a broad VCC range. ESD protection diodes inherently guard both input and output with respect to the VCC and GND rails. Three stages of gain between input and output assures high noise immunity and redu ed sensitivity to input edge rate.
