Product Details

Description



Features:

• Maximum Input Clock Frequency up to 12 GHz Typical
• Maximum Input Data Rate up to 12 Gb/s Typical
• 30 ps Typical Rise and Fall Times
• 125 ps Typical Propagation Delay
• RSPECL Output with Operating Range: VCC = 2.375 V to 3.465 V with VEE = 0 V
• RSNECL Output with RSNECL or NECL Inputs with Operating Range: VCC = 0 V with VEE = -2.375 V to -3.465 V
• RSECL Output Level (400 mV Peak-to-Peak Output), Differential Output Only
• 50 Internal Input Termination Resistors
• Compatible with Existing 2.5 V/3.3 V LVEP, EP, and LVEL Devices

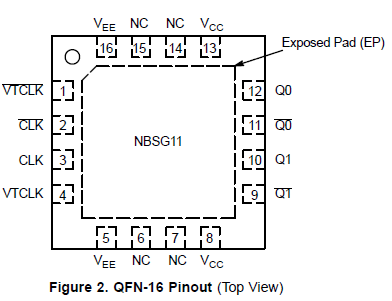

Pinout

Connection Diagram


Specifications

Symbol
 Parameter Condition 1 Condition 2
Rating
Units
VCC
 Positive Power Supply VEE = 0 V
3.6
V
VEE
 Negative Power Supply VCC = 0 V
-3.6
V
VI
 Positive Input
Negative Input		 VEE = 0 V
VCC = 0 V		 VI VCC
VI VEE
3.6
-3.6
V
V
VINPP
 Differential Input Voltage           |D - D | VCC - VEE 2.8 V
VCC - VEE < 2.8 V
2.8
|VCC - VEE|
V
V
Iout
 Output Current Continuous
Surge
25
50
mA
mA
TA
 Operating Temperature Range 16 FCBGA
16 QFN
-40 to +70
-40 to +85
Tstg
 Storage Temperature Range
-65 to +150
JA
 Thermal Resistance (Junction-to-Ambient)
(Note 6)		 0 LFPM
500 LFPM
0 LFPM
500 LFPM		 16 FCBGA
16 FCBGA
16 QFN
16 QFN
108
86
41.6
35.2
/W
/W
/W
/W
JC
 Thermal Resistance (Junction-to-Case) 1S2P (Note 6)
2S2P (Note 7)		 16 FCBGA
16 QFN
5.0
4.0
/W
/W
Tsol
 Wave Solder < 15 Seconds
225

5. Maximum Ratings are those values beyond which device damage may occur.
6. JEDEC standard multilayer board - 1S2P (1 signal, 2 power).
7. JEDEC standard multilayer board - 2S2P (2 signal, 2 power) with 8 filled thermal vias under exposed pad.


Description

The NBSG11 is a 1-to-2 differential fanout buffer, optimized for low skew and ultra-low JITTER. Inputs incorporate internal 50 termination resistors and accept NECL (Negative ECL), PECL (Positive ECL), CML, LVCMOS, LVTTL, or LVDS. Outputs are RSECL (Reduced Swing ECL), 400 mV.
