Features:

• Maximum Input Clock Frequency up to 8 GHz Typical
• Maximum Input Data Rate up to 12 Gb/s Typical
• < 0.5 ps of RMS Clock Jitter
• < 10 ps of Data Dependent Jitter
• 30 ps Typical Rise and Fall Times
• 110 ps Typical Propagation Delay
• 3 ps Typical Within Device Skew
• Operating Range: V_CC = 2.375 V to 3.465 V with V_EE = 0 V
• CML Output Level (400 mV Peak−to−Peak Output) Differential Output Only
• 50 Internal Input and Output Termination Resistors
• Functionally Compatible with Existing 2.5 V/3.3 V LVEL, LVEP, EP and SG Devices

Pinout

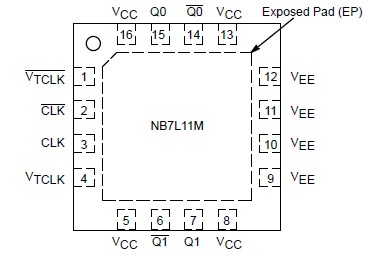

Connection Diagram

Specifications

Symbol	Parameter	Condition 1	Condition 2	Rating	Units
V_CC	Positive Power Supply	V_EE = 0 V		3.6	V
V_I	Input Voltage	VEE = 0 V	V_EE V_I V_CC	3.6	V
V_INPP	Differential Input Voltage \|CLK − CLK\|	V_CC− V_EE 2.8 V V_CC − V_EE< 2.8 V		2.8 \|V_CC −V_EE\|	V
I_IN	Input Current Through RT (50 Resistor)	Static Surge		45 80	mA mA
I_out	Output Current Continuous	Surge		25 50	mA mA
T_A	Operating Temperature Range	QFN−16		−40 to +85	°C
T_stg	Storage Temperature Range			−65 to +150	°C
_JA	Thermal Resistance (Junction−to−Ambient) (Note 4)	0 lfpm 500 lfpm	QFN−16 QFN−16	42 36	°C/W °C/W
_JC	Thermal Resistance (Junction−to−Case)	2S2P (Note 4)	QFN−16	3 to 4	°C/W
T_sol	Wave Solder Pb Pb−Free	< 3 Sec @ 248°C < 3 Sec @ 260°C		265 265	°C

Description

The NB7L11M is a differential 1−to−2 clock/data distribution chip with internal source termination and CML output structure, optimized for low skew and minimal jitter. The NB7L11M is functionally equivalent to the EP11, LVEP11, or SG11 devices. Device produces two identical output copies of clock or data operating up to 8 GHz or 12 Gb/s, respectively. As such, NB7L11M is ideal for SONET, GigE, Fiber Channel, Backplane and other clock/data distribution applications.Inputs incorporate internal 50 termination resistors and accept LVPECL, CML, LVCMOS, LVTTL, or LVDS (See Table 6).Differential 16 mA CML output provides matching internal 50 terminations, and 400 mV output swings when externally terminated, 50 to V_CC (See Figure 14).

The NB7L11M is offered in a low profile 3x3 mm 16−pin QFN package. Application notes, models, and support documentation are available at www.onsemi.com.
