Features: • Maximum Input/Output Clock Frequency > 700 MHz• Low Skew LVPECL Outputs, 15 ps typical• 1 ns Typical Propagation Delay• 150 ps Typical Rise and Fall Times• 0.15 ps Typical RMS Phase Jitter• 0.5 ps Typical RMS Random Clock Period Jitter• LVPE...
NB4L339: Features: • Maximum Input/Output Clock Frequency > 700 MHz• Low Skew LVPECL Outputs, 15 ps typical• 1 ns Typical Propagation Delay• 150 ps Typical Rise and Fall Times̶...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
US $3.65 - 6.53 / Piece
Translation - Voltage Levels 2.5V/3.3V 5Gb/s Driver/RCVR/Buffer
Symbol | Parameter | Condition 1 | Condition 2 | Rating | Units |
VCC | Positive Power Supply | VEE = 0 V | 4.0 | V | |
VIO | Input/Output Voltage | VEE = 0 V | −0.5 = VIo VCC + 0.5 | 4.0 | V |
VINPP | Differential Input Voltage Swing |CLK − CLK| | 2.8 | V | ||
IIN | Input Current Through RT (50 Resistor) | Static Surge |
45 80 |
mA | |
IOUT | Output Current | Continuous Surge |
50 100 |
mA | |
TA | Operating Temperature Range | QFN−32 | −40 to +85 | °C | |
Tstg | Storage Temperature Range | −65 to +150 | °C | ||
JA | Thermal Resistance (Junction−to−Ambient) (Note 3) | 0 LFPM 500 LFPM |
QFN−32 QFN−32 |
31 27 |
°C/W |
JC | Thermal Resistance (Junction−to−Case) | (Note 3) | QFN−32 | 12 | °C/W |
Tsol | Wave Solder (Pb−Free) | 265 | °C |
The NB4L339 is a multi−function Clock generator featuring a 2:1 Clock multiplexer front end and simultaneously outputs a selection of four different divide ratios from its four divider blocks; ÷1/÷2/÷4/÷8. One divide block has a choice of ÷1 or ÷ 2.
The output of each NB4L339 divider block is fanned−out to two identical differential LVPECL copies of the selected clock. All outputs provide standard LVPECL voltage levels when externally terminated with a 50−ohm resistor to VCC − 2 V.
The differential Clock inputs incorporate internal 50− termination resistors and will accept LVPECL, CML or LVDS logic levels.
The common Output Enable pin (EN) is synchronous so that the internal dividers will only be enabled/disabled when the internal clock is in the LOW state. This avoids any chance of generating a runt clock pulse on the internal clock when the NB4L339 is enabled/disabled as can happen with an asynchronous control. An internal runt pulse could lead to losing synchronization between the internal divider stages. The internal enable flip−flop is clocked on the falling edge of the input clock. Therefore, all associated specification limits are referenced tothe negative edge of the clock input.

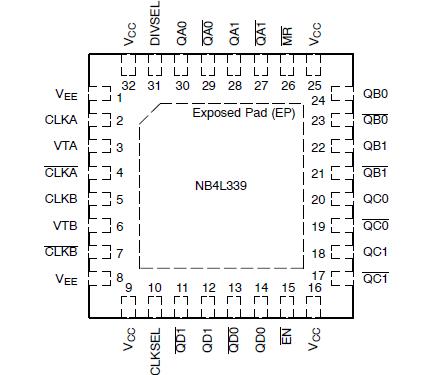

NB4L339 is housed in a 5x5 mm 32 pin QFN package.
