Features: • 15 MHz to 133 MHz Operating Range, Compatible with CPU and PCI Bus Frequencies• Zero Input − Output Propagation Delay• Multiple Low−Skew Outputs• Output−Output Skew Less than 250 ps• Device−Device Skew Less than 700 ps• One In...
NB2309A: Features: • 15 MHz to 133 MHz Operating Range, Compatible with CPU and PCI Bus Frequencies• Zero Input − Output Propagation Delay• Multiple Low−Skew Outputs• Outp...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Supply Voltage to Ground Potential .......................−0.5 to +7.0 V
DC Input Voltage (Except REF) ......................−0.5 to VDD + 0.5 V
DC Input Voltage (REF) ...............................................−0.5 to 7 V
Storage Temperature .........................................−65 to +150 °C
Maximum Soldering Temperature (10 sec) ........................260 °C
Junction Temperature .......................................................150 °C
Static Discharge Voltage (per MIL−STD−883, Method 3015)...>2000 V
Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied,damage may occur and reliability may be affected.

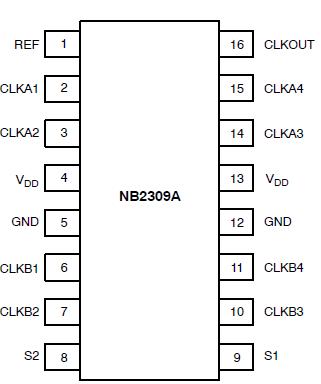

The NB2309A is a versatile, 3.3 V zero delay buffer designed to distribute high−speed clocks. It accepts one reference input and drives out nine low−skew clocks. It is available in a 16 pin package.The −1H version of the NB2309A operates at up to 133 MHz, and has higher drive than the −1 devices. All parts have on−chip PLL's that lock to an input clock on the REF pin. The PLL feedback is on−chip and is obtained from the CLKOUT pad.
It has two banks of four outputs each, which can be controlled by the Select inputs as shown in the Select Input Decoding Table. If all the output clocks are not required, Bank B can be three−stated. The select inputs also allow the input clock to be directly applied to the outputs for chip and system testing purposes.Multiple NB2309A devices can accept the same input clock and distribute it. In this case the skew between the outputs of the two devices is guaranteed to be less than 700 ps.
All outputs have less than 200 ps of cycle−to−cycle jitter. The input and output propagation delay is guaranteed to be less than 350 ps, and the output to output skew is guaranteed to be less than 250 ps.The NB2309A is available in two different configurations, as shown in the ordering information table. The NB2309A is the base part. The NB2309Ax1H* is the high drive version of the −1 and its rise and fall times are much faster than −1 part.
