NAG107PB, US $ 2.54-2.54, NAG107PB DataSheet download, circuit diagram from SeekIC.com

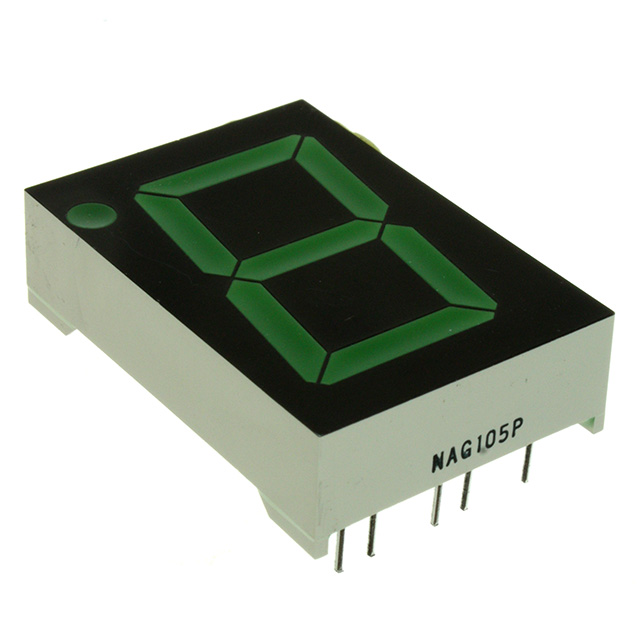

See larger image

SeekIC No. : 003611317 Detail

NAG107PB: LED 7-SEG DISP 1" GREEN CA GRAY

NAG107PB Data Sheet

US $ 2.54~2.54 / Piece | Get Latest Price

Part Number:: NAG107PB
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~100

Unit Price
$2.54

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Quick Details

Product :	FSK Demodulator / Tone Decoder	Series:	107
Manufacturer:	Stanley Electric Co	Number of Digits/Alpha:	1
Size / Dimension:	1.30" L x 0.90" W x 0.35" H (33mm x 22.8mm x 9mm)	Digit/Alpha Size:	1.00" (25.40mm)
Display Type:	7-Segment	Common Pin:	Common Anode
Color:	Green	Voltage - Forward (Vf) Typ:	2.2V
Current - Test:	20mA	Millicandela Rating:	4mcd
Wavelength - Peak:	565nm	Power Dissipation (Max):	63mW

Description

Number of Digits/Alpha: 1
Display Type: 7-Segment
Common Pin: Common Anode
Color: Green
Wavelength - Peak: 565nm
Voltage - Forward (Vf) Typ: 2.2V
Millicandela Rating: 4mcd
Current - Test: 20mA
Digit/Alpha Size: 1.00" (25.40mm)
Manufacturer: Stanley Electric Co
Size / Dimension: 1.30" L x 0.90" W x 0.35" H (33mm x 22.8mm x 9mm)
Power Dissipation (Max): 63mW
Package / Case: 14-DIP
Series: 107

Parameters:

Technical/Catalog Information	NAG107PB
Vendor	Stanley Electric Co
Category	Optoelectronics
Display Type	7-Segment
Color	Green
Package / Case	14-DIP
Number of Digits/Alpha	1
Size / Dimension	1.30" L x 0.90" W x 0.35" H (33mm x 22.8mm x 9mm)
Common Pin	Common Anode
Digit/Alpha Size	1.00" (25.4mm)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	NAG107PB NAG107PB
