N74F538D

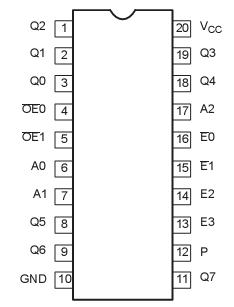

Pinout




Specifications

SYMBOL	PARAMETER	RATING	UNIT
V CC	Supply voltage	0.5 to +7.0	V
V IN	Input voltage	0.5 to +7.0	V
I IN	Input current	30 to +5.0	mA
VOUT	Voltage applied to output in High output state	0.5 to +VCC	V
IOUT	Current applied to output in Low output state	48	mA
Tamb	Operating free-air temperature range	0 to +70	°C
T stg	Storage temperature range	65 to +150	°C

Description

The 74F538 decoder/demultiplexer accepts three address (A0 - A2) input signals and decodes them to select one of eight mutually exclusive outputs. A Polarity control (P) input determines whether the outputs are active Low or active High. The 74F538 has 3-State outputs, and a High signal on the Output Enables (OE n) inputs will force all outputs to the high impedance state. Two active High (E2,E3) and two active Low (E 0, E 1) inputs are available for easy expansion to 1-of-32 decoding with four packages, or for data demultiplexing to 1-of-8 or 1-of-16 destinations.
