Product Details

Description



Features:

• Provides 16 arithmetic operation: add, subtract, compare, and double; plus 12 other arithmetic operations
• Provides all 16 logic operations of two variables: Exclusive-OR, Compare, AND, NAND, NOR, OR, plus 10 other logic operations
• Full look-ahead carry for high speed arithmetic operation on long words
• 40% faster than 'S181 with only 30% 'S181 power consumption
• Available in 300mil-wide Slim 24-pin Dual In-Line package


Pinout

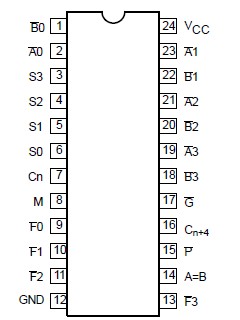

Connection Diagram


Specifications



(Operation beyond the limits set forth in this table may impair the useful life of the device.
Unless otherwise noted these limits are over the operating free-air temperature range.)

SYMBOL
PARAMETER
RATING
UNIT
VCC
 Supply voltage
0.5 to +7.0
V
VIN
 Input voltage
0.5 to +7.0
V
IIN
 Input current
30 to +5
mA
VOUT
 Voltage applied to output in High output state
0.5 to VCC
V
IOUT
 Current applied to output in Low output state
40
mA
Tamb
 Operating free-air temperature range
0 to +70
°C
Tstg
 Storage temperature range
65 to +150
°C



Description

The 74F181 is a 4-bit high-speed parallel Arithmetic Logic Unit (ALU). Controlled by the four Function Select inputs (S0S3) and the Mode Control input (M), 74F181 can perform all the 16 possible logic operations or 16 different arithmetic operations on active-High or active-Low operands. The Function Table lists these operations.
