N1164

Features: ·Synchronous operation with high efficiency·TTL-compatible 5 bit DAC, output voltage selection from 1.3V to 3.5V programmable·High current totem pole output, up to 2 A for direct driving of the external N-Channel power MOSFETs.·200 KHz fixed frequency internal oscillator·Fast transient r...

product image

N1164 Picture
See larger image
SeekIC No. : 004432534 Detail

N1164: Features: ·Synchronous operation with high efficiency·TTL-compatible 5 bit DAC, output voltage selection from 1.3V to 3.5V programmable·High current totem pole output, up to 2 A for direct driving o...

N1164 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
N1164
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Synchronous operation with high efficiency
·TTL-compatible 5 bit DAC, output voltage selection from 1.3V to 3.5V programmable
·High current totem pole output, up to 2 A for direct driving of the external N-Channel power MOSFETs.
·200 KHz fixed frequency internal oscillator
·Fast transient response
·Provides 2 regulated voltages, 1.5V and 2.5V for linear section
·Power-Good output voltage monitor
·Over-Voltage and Over-Current protection
·Logic level enable input
·High performance and low cost solution


Application

·Powering Pentium ® II, III or Deschutes, K6 and other advanced processor
·High power DC to DC controller with triple output supplies


Pinout

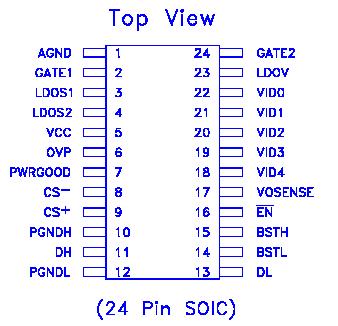

Connection Diagram


Specifications

VCC to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . - 0.3V to 7V
BST to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . .-0.3V to 15V
Thermal Resistance Junction to Case, JC  . . . .. . .25 °C/W
Thermal Resistance Junction to Ambient, JA  . .  . .80 °C/W
Operating Temperature Range, TA . . . . . . . . . . . 0 to 70 °C
Operating Junction Temperature Range, TJ  . . . 0 to 125 °C
Storage Temperature Range, TSTG  . . . . . . . . -65 to 150 °C
Lead Temperature, TLEAD (Soldering, 10 Seconds)  . .300 °C


Description

The N1164 is a 5 bit TTL-compatible input, digital-to-analog (DAC) programmable, syn- chronous buck converter with dual LDOs controller designed specifically to power the Pentium ® II as well as the next generation of P6 family or other high performance core logic in desktop personal computer and file servers CPU applications.

The N1164 switching section provides pro-grammability of output voltage from 1.3V to 2.05V in 50mV steps and 2.0V to 3.5V in 100 mV increments and the linear sections use external N-Channel power MOSFETs to provide fixed output voltages of 1.5V for GTL bus and 2.5V for clock.

The N1164 monitors all the output voltages. A signal Power-Good signal is issued when the core is within ±15% of the DAC setting. Additional features are built-in over-voltage, over-current protections for the core output and logic compatible shutdown.
