Features:

·High performance and low cost solution
·Synchronous operation with high efficiency
·TTL-compatible 5 bit DAC, output voltage selection from 1.3V to 3.5V programmable
·High current totem pole output, up to 2 A for direct driving of the external N-Channel power MOSFETs.
·200 KHz fixed frequency internal oscillator
·Fast transient response
·Power-Good output voltage monitor
·Over-Voltage and Over-Current protection






Application

·Powering Pentium ® II, III or Deschutes, K6 and other advanced processor
·Multiple microprocessor supplies
·High power DC to DC controller
·Programmable power supplies


Pinout

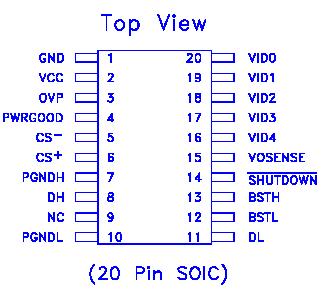

Connection Diagram


Specifications

VCC to GND, VIN . . . . . . . . . . - 0.3V to 7V
BST to GND  . . . . . . . . . . . . .-0.3V to 15V
Thermal Resistance
Junction to Case, JC  . . . . . . . 30 °C/W
Thermal Resistance
Junction to Ambient, JA  . . . . . 90 °C/W
Operating Temperature
Range, TA . . . . . . . . . . . . . . .  0 to 70 °C
Operating Junction
Temperature Range, TJ  . . . . 0 to 125 °C
Storage Temperature
Range, TSTG  . . . . . . . . . . . -65 to 150 °C
Lead Temperature, TLEAD
Soldering, 10 Seconds)  . . . . . . .  .300 °C


Description

The N1153 is a low-cost, 5 bit TTL-compatible input, digital-to-analog (DAC) programmable, synchronous buck converter controller design-ed specifically to power the Pentium ® II as well as the next generation of P6 family or other high performance core logic in desktop person-al computer CPU applications.

Additional features of N1153 also include temperature compensated voltage reference, triangle wave oscillator, current limits comparator, frequency shift over-current protection, and an access-ible, internally compensated error amplifier, power good signal, logic compatible shutdown, and over voltage protection are also provide.

The N1153 operates at a fixed 200KHz, provid-ing an optimum compromise between efficien-cy, external component size, and cost.
