N01M083WL1A

Features: • Single Wide Power Supply Range 2.3 to 3.6 Volts• Very low standby current 2.0A at 3.0V (Typical)• Very low operating current 2.0mA at 3.0V and 1s (Typical)• Very low Page Mode operating current 0.8mA at 3.0V and 1s (Typical)• Simple memory controlDual Chip...

product image

N01M083WL1A Picture
See larger image
SeekIC No. : 004432516 Detail

N01M083WL1A: Features: • Single Wide Power Supply Range 2.3 to 3.6 Volts• Very low standby current 2.0A at 3.0V (Typical)• Very low operating current 2.0mA at 3.0V and 1s (Typical)• Very ...

N01M083WL1A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
N01M083WL1A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single Wide Power Supply Range 2.3 to 3.6 Volts
• Very low standby current 2.0A at 3.0V (Typical)
• Very low operating current 2.0mA at 3.0V and 1s (Typical)
• Very low Page Mode operating current 0.8mA at 3.0V and 1s (Typical)
• Simple memory control
Dual Chip Enables (CE1and CE2)
Output Enable (OE) for memory expansion
• Low voltage data retention Vcc = 1.8V
• Very fast output enable access time 30ns OE access time
• Automatic power down to standby mode
• Special Processing to reduce Soft Error Rate (SER)

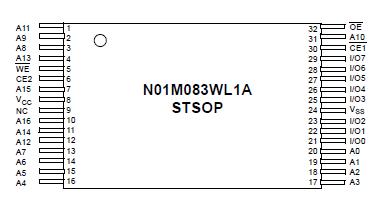

Pinout

Connection Diagram


Specifications

Item
Symbol
Rating
Unit
Voltage on any pin relative to VSS
VIN,OUT
0.3 to VCC+0.3
V
Voltage on VCC Supply Relative to VSS
VCC
0.3 to 4.5
V
Power Dissipation
PD
500
mW
Storage Temperature
TSTG
65 to 150
Operating Temperature
TA
-40 to +85
Soldering Temperature and Time
TSOLDER
240, 10sec(Lead only)



Description

The N01M083WL1A is an integrated memory device intended for non life-support (Class 1 or 2) medical applications. This device comprises a 1 Mbit Static Random Access Memory organized as 131,072 words by 8 bits. The device is designed and fabricated using NanoAmp's advanced CMOS technology with reliability inhancements for medical users. The base design is the same as NanoAmp's N01M0818L2A, which has further reliability processing for life-support (Class 3) medical applications. The device operates with two chip enable (CE1 and CE2) controls and output enable (OE) to allow for easy memory expansion.

The N01M083WL1A is optimal for various applications where low-power is critical such as battery backup and hand-held devices.

The N01M083WL1A device can operate over a very wide temperature range of -40oC to +85oC and is available in JEDEC standard packages compatible with other standard 256Kb x 8 SRAMs
