MXED102

Features: • CMOS High Voltage Process: 9V-30V Display Panel Supply Compatible• 240 Output Channels, Cascadable• Token-Based Bidirectional Data Transfer: Direct User Control of Scan Rate• Current Source Magnitude User Control: 4 A to 1 mA• 6-Bit Monochromatic/Color Gra...

product image

MXED102 Picture
See larger image
SeekIC No. : 004431956 Detail

MXED102: Features: • CMOS High Voltage Process: 9V-30V Display Panel Supply Compatible• 240 Output Channels, Cascadable• Token-Based Bidirectional Data Transfer: Direct User Control of Scan...

MXED102 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MXED102
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• CMOS High Voltage Process: 9V-30V Display Panel Supply Compatible
• 240 Output Channels, Cascadable
• Token-Based Bidirectional Data Transfer: Direct User Control of Scan Rate
• Current Source Magnitude User Control: 4 A to 1 mA
• 6-Bit Monochromatic/Color Gray-Scale User Control
• Current matching accuracy: ± 2% ± 1.5 A intra-die ± 1% inter-die
• Monochromatic/Color Voltage Precharge Options
• Built-In A-to-D Converter Monitoring of Display Panel Characteristics
• 3.3 V to 5 V logic supply
• Up to 35 MHz clock frequency
• Gold-Bumped Die @ 60 micron Output Pitch
• TCP packaging
• Companion to Clare Micronix MXED202 128-Channel OLED Row Driver


Pinout

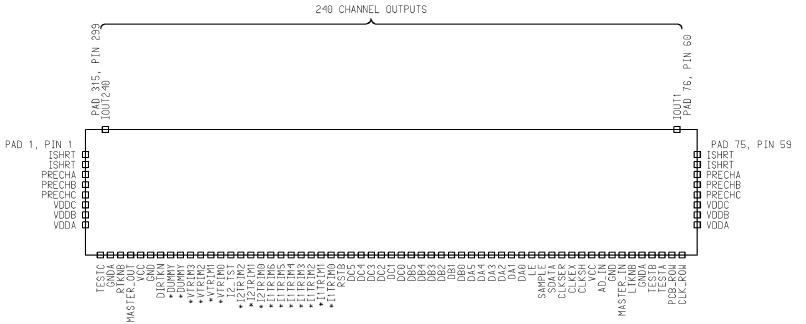

Connection Diagram


Specifications

Parameter
Operating Condition
Min
Typ
Max
Units
Ambient temp
-
-65
-
155
Low voltage supply
-
-0.3
-
7.0
V
High voltage supply
-
-0.3
-
35.0
V



Description

The MXED102 is Clare's second-generation OLED column driver offering, which supports up to 240-monochromatic or 80-color OLED pixels. The MXED102's exceptionally tight current-matching of adjacent and cascaded outputs, precharge options, and OLED monitoring capability, ensures uniform luminance and highquality greyscaling in both monochromatic and RGB mode. This is the first ASSP production driver for OLED module OEM's building a new standard in flat-panel displays.
