MX96037

Features: • 16-bit, 47/54/65 ns cycle (21/18/15 MIPs) DSP controller.• 16x16 multiplier, one cycle multiply-accumulate.• 32-bit ALU and 16-bit auxiliary ALU (ARAU) work in parallel.• 8 auxiliary registers for indirect addressing work with ARAU.• 16-level hardware stac...

product image

MX96037 Picture
See larger image
SeekIC No. : 004431885 Detail

MX96037: Features: • 16-bit, 47/54/65 ns cycle (21/18/15 MIPs) DSP controller.• 16x16 multiplier, one cycle multiply-accumulate.• 32-bit ALU and 16-bit auxiliary ALU (ARAU) work in parallel...

MX96037 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MX96037
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 16-bit, 47/54/65 ns cycle (21/18/15 MIPs) DSP controller.
• 16x16 multiplier, one cycle multiply-accumulate.
• 32-bit ALU and 16-bit auxiliary ALU (ARAU) work in parallel.
• 8 auxiliary registers for indirect addressing work with ARAU.
• 16-level hardware stack and nestable interrupt support.
• 32-bit barrel shifter.
• 8-instruction looped up to 128 times capability.
• Block program move.
• 64k words program ROM space, 18k words may be internal.
• External ROM option may replace internal 18K for fast prototyping.
• 64k words SRAM space, 2048 words internal.
• 32 internal IO address.
• 1 independent interrupt pin, 1 NMI pin.
• 8 input pins.
• 8 bi-direction I/O pins.
• 16 output pins.
• Hold or slow system clock for power management.
• 1 ms system tick timer for system timing.
• One Codec interface.
• Built-in DRAM Controller;1G addressing space,with 1/4/8/16 data bit interface support.
• Single 5V supply, 100 pins PQFP


Pinout

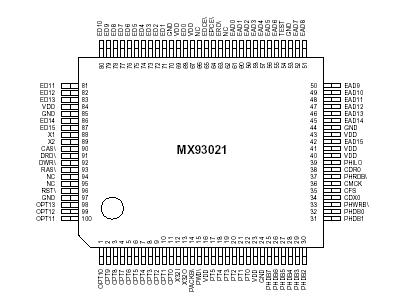

Connection Diagram
