MX8810

* for color image, 14.3MHz/Pixel high speed
* for grey level image, 28.6MHz/Pixel high speed
* real time process for color image and grey level image(full frame [30 frames/sec], full screen [768x480 :NTSC] in case of DMA mode) (High Quality Image)
* block distortion detection function
* real time process even in high quality mode.(full frame [30 frames/sec], full screen [768x480 :NTSC] in case of DMA mode )

•Total cost down for the system (Minimize external circuit & packaging area)
* can directly connect with NTSC signal encoder/decoder without frame memory.
* comprssion/decompression functions in one chip
* color space conversion function
* control function of buffer memory for raster block conversion
* For the system without cpu, it provides independent board and separated cpu I/F and compression data I/ F.

• Others
* field decision function
* power down function
* standard Y quantization table/ standard C quantization table (user definable)
* quantization table scale function
* standard Y huffman table/ standard C huffman table
* 32bits/16bits DMA mode or synchronous mode can be used in data compression I/O.
* chroma-key detection
* maximum system clock = 28.6MHz

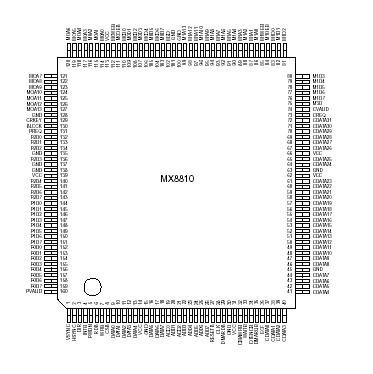

* 160 pins QFP
* 5V single power supply
