MX86200

• High Performance Architecture
• True 64-bit graphics engine.
• True 8/16/32 bpp acceleration.
• BitBLT, rectangle, pattern fill, line draw, color expansion and complete 256 ROP.
• On-chip pattern memory.
• Multiple advanced FIFOs.
• Memory-mapped I/O.
• 64x64x2 bit-mapped hardware cursor.
• High-quality Video Playback
• Support primary surface DCI drivers for smooth and high quality video playback.
• Support Microsoft Video For Windows.
• Advanced Memory Control
• 1,2, or 4 MBytes display memory.
• True 64-bit display memory access.
• 256K x 4, 256K x 8, and 256K x 16 dual CAS or dual WE DRAM.
• Fast-page and Hyper-page EDO.
• Auto memory size detection.
• Linear addressing modes up to 4 MByte.
• Full Resolution/color support
• 1600x1200, 64K colors @ 60 Hz.
• 1280x1024, 64K color @ 75 Hz.
• 1024x768, 16M color @ 60 Hz.
• Fully Integrated for Modern Systems
• Glueless PCI bus interface.
• Full PCI 2.1 compliance.
• Integrated RA MDAC.
• Integrated programmable 135 MHz clock synthesizer.
• Low-Power sub-micron CMOS.

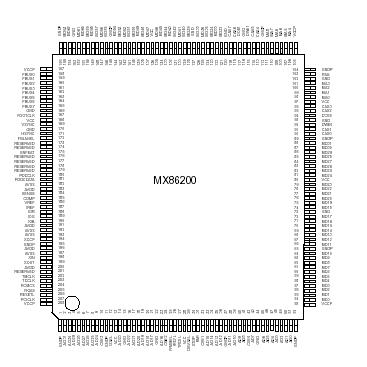

• 208 pin PQFP.
• Engineered for Modern Standards
• Plug and Play compliant.
• VESA Display Data Channel (DDC2B) protocol support.
• VESA standard Feature Connector support.
• DPMS and advanced power management support.
