MX8300

The MX8300 product is a clock synthesizer chip for Rambus Channel. It uses advanced Phase lock loop technology to generate desired clock. The reference clock is supplied by external crystal. The FSO clock is 14 or 17 times of reference clock and its interface level is Rambus interface compatible. Beside FSO clock, crystal frequency divided by four clock output (FSC) is also provided for testing purpose. The FSC clock output is TTL compatible.

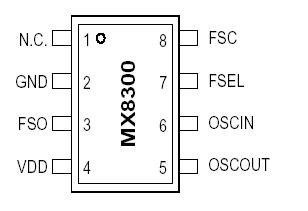

The MX8300 is 3.3 V operation, and the package type is 8-pin SOP.
