MX7535

Features: `14-Bit Monotonic Over Full Temperature Range`Full 4-Quadrant Multiplication`P-Compatible, Double-Buffered Inputs`Exceptionally Low Gain Tempco (2.5ppm/°C)`Low Output Leakage (<20nA) Over Temp.`Low Power Consumption`TTL and CMOS CompatibleApplicationMachine and Motion Control SystemsA...

product image

MX7535 Picture
See larger image
SeekIC No. : 004431827 Detail

MX7535: Features: `14-Bit Monotonic Over Full Temperature Range`Full 4-Quadrant Multiplication`P-Compatible, Double-Buffered Inputs`Exceptionally Low Gain Tempco (2.5ppm/°C)`Low Output Leakage (<20nA) Ov...

MX7535 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MX7535
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`14-Bit Monotonic Over Full Temperature Range
`Full 4-Quadrant Multiplication
`P-Compatible, Double-Buffered Inputs
`Exceptionally Low Gain Tempco (2.5ppm/°C)
`Low Output Leakage (<20nA) Over Temp.
`Low Power Consumption
`TTL and CMOS Compatible


Application

Machine and Motion Control Systems
Automatic Test Equipment
Digital Audio
P-Controlled Calibration Circuitry
Programmable-Gain Amplifiers
Digitally Controlled Filters
Programmable Power Supplies


Pinout

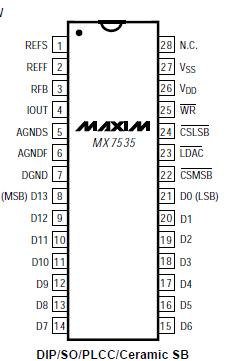

Connection Diagram




Specifications

VDD to DGND .......................................................-0.3V, +17V
VSS to AGND ........................................................-15V, +0.3V
REF to AGND (MX7534) .................................................±25V
REFS to AGND (MX7535) ...............................................±25V
REFF to AGND (MX7535) ...............................................±25V
RFB to AGND..................................................................±25V
Digital Input Voltage to DGND.....................-0.3V, VDD + 0.3V
IOUT to DGND..............................................-0.3V, VDD + 0.3V
AGND to DGND.............................................-0.3V, VDD + 0.3V
Continuous Power Dissipation (TA = +70)
20-Pin Plastic DIP (derate 11.11mW/ above +70)..889mW
28-Pin Plastic DIP (derate 14.29mW/ above +70)....1.14W
20-Pin SO (derate 10.00mW/ above +70)..............800mW
28-Pin SO (derate 12.50mW/ above +70).....................1W
20-Pin PLCC (derate 10.00mW/above +70) ...........800mW
28-Pin PLCC (derate 10.53mW/ above +70) ..........842mW
20-Pin CERDIP (derate 11.11mW/ above +70)........889mW
28-Pin CERDIP (derate 16.67mW/ above +70)..........1.33W
20-Pin Ceramic SB
(derate 11.76mW/ above +70) ...............................941mW
28-Pin Ceramic SB
(derate 20.00mW/ above +70)....................................1.6W
Operating Temperature Ranges
MX753_J/K...............................................................0 to +70
MX753_A/B ..........................................................-25 to +85
MX753_EW_.........................................................-40 to +85
MX753_S/T.........................................................-55 to +125
Storage Temperature Range .............................-65 to +150
Lead Temperature (soldering, 10sec) .............................+300


Description

The MX7534/MX7535 are high-performance, CMOS,monolithic, 14-bit digital-to-analog converters (DACs). Wafer-level, laser-trimmed, thin-film resistors and temperature-compensated NMOS switches assure operation over the full operating temperature range with exceptional linear and gain stability.

The MX7534 accepts right-justified data in two bytes from an 8-bit bus, while the MX7535 operates with a 14-bit data bus with separate MS-byte and LS-byte select controls. In addition, all digital inputs are compatible with both TTL and 5V CMOS-logic levels. The MX7534/MX7535 are intended for unipolar operation, but may be operated as bipolar DACs with additional external components. Both devices are protected against CMOS latchup, and neither requires the use of external Schottky protection diodes.

The MX7534 is available in 20-pin narrow (0.3") DIP, wide SO, or PLCC packages. The MX7535 is available in 28-pin, 600 mil wide DIP, wide SO, or PLCC packages.
