MX27L1000

Features:

• 128K x 8 organization
• Wide power supply range, 2.7V DC to 3.6VDC
• +12.5V programming voltage
• Fast access time:90/120/150/200/250 ns
• Totally static operation
• Completely TTL compatible
• Operating current: 20mA @3.6V, 5MHz
• Standby current: 10uA
• Package type:
  - 32 pin plastic DIP
  - 32 pin SOP
  - 32 pin TSOP
  - 32 pin PLCC

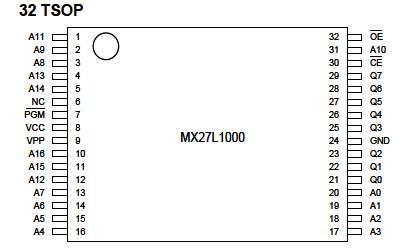

Pinout



Specifications

RATING	VALUE
Ambient Operating Temperature	-40 to 85
Storage Temperature	-65 to 125
Applied Input Voltage	-0.5V to 7.0V
Applied Output Voltage	-0.5V to VCC+0.5V
VCC to Ground Potential	-0.5V to 7.0V
V9 & VPP	-0.5V to 13.5V

Description

The MX27L1000 is a 1M-bit, One Time Programmable Read Only Memory. It isorganized as 128K words by 8 bits per word, opeates from a single 2.7 to 3.6 volt supply,
has a static standby mode, and features fast single address location programming. All programming signals are TTL levels, requirin a single pulse. For programming outside from the system, existing EPROM programmers may be used. The MX27L1000 supports a intelligent fast programming algorithm which can result in programming time of less than thirty seconds.

This EPROM is packaged in industry standard 32 pin dual-in-line packages,32 lead SOP , 32 lead PLCC, and 32 lead TSOP packages.
