MX27C8100

Features:

•  1M x 8 or 512K x 16 organization
•  +12.5V programming voltage
•  Fast access time:  100/120/150/200  ns
•  Totally static operation
•  Completely TTL compatible
•  Operating current: 60mA
•  Standby current: 100uA
•  Package type:
    - 42 pin plastic DIP
    - 44 pin SOP

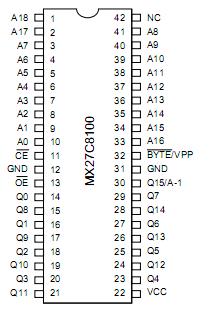

Pinout




Specifications

RATING	VALUE
Ambient Operating Temperature	0oC to 70oC
Storage Temperature	-65oC to 125oC
Applied Input Voltage	-0.5V to 7.0V
Applied Output Voltage	-0.5V to VCC + 0.5V
VCC to Ground Potential	-0.5V to 7.0V
A9 & VPP	-0.5V to 13.5V

Description

The MX27C8100 is a 5V only, 8M-bit, One Time Program-mable Read Only Memory. It is organized as  1M x 8 or 512K x 16, operates from a single + 5 volt  supply, has a static standby  mode, and features fast single address location pro-gramming.  All programming signals are TTL levels, requiring a single pulse. For programming outside from the system, existing EPROM programmers may be used.  The MX27C8100 supports a intelligent fast programming algorithm which can result in programming time of less than two minutes.

This One Time Programmable Read Only Memory is packaged in industry standard 42 pin dual-in-line  plastic package and 44 pin SOP packages.
