MX27C1000PC-45

Features: • 128K x 8 organization• Single +5V power supply• +12.5V programming voltage• Fast access time: 45/55/70/90/100/120/150 ns• Totally static operation• Completely TTL compatible 1• Operating current: 30mA• Standby current: 100uA• Packag...

product image

MX27C1000PC-45 Picture
See larger image
SeekIC No. : 004431647 Detail

MX27C1000PC-45: Features: • 128K x 8 organization• Single +5V power supply• +12.5V programming voltage• Fast access time: 45/55/70/90/100/120/150 ns• Totally static operation• Co...

MX27C1000PC-45 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MX27C1000PC-45
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 128K x 8 organization
• Single +5V power supply
• +12.5V programming voltage
• Fast access time: 45/55/70/90/100/120/150 ns
• Totally static operation
• Completely TTL compatible 1
• Operating current: 30mA
• Standby current: 100uA
• Package type:
- 32 pin plastic DIP
- 32 pin SOP
- 32 pin PLCC
- 32 pin TSO


Pinout

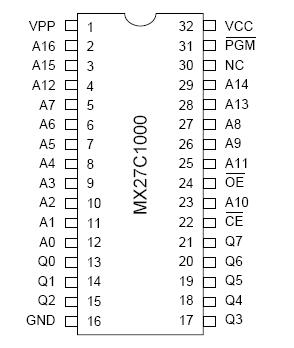

Connection Diagram


Specifications

RATING VALUE
Ambient Operating Temperature -40oC to 125oC
Storage Temperature -65oC to 125oC
Applied Input Voltage -0.5V to 7.0V
Applied Output Voltage -0.5V to VCC + 0.5V
VCC to Ground Potential -0.5V to 7.0V
A9 & Vpp -0.5V to 13.5V



Description

The MX27C1000PC-45 is a 5V only, 1M-bit, One Time Programmable Read Only Memory. It is organized as 128K words by 8 bits per word, operates from a single + 5 volt supply, has a static standby mode, and features fast single address location programming. All programming signals are TTL levels, requiring a single pulse. For programming outside from the system, existing EPROM programmers may be used. The MX27C1000PC-45 supports an intelligent fast programming algorithm which can result in programming time of less than thirty seconds.

This EPROM is packaged in industry standard 32 pin dual-in-line packages, 32 lead PLCC , 32 lead SOP , and 32 lead TSOP packages.
