Product Details

Description

Features:

• 256Kx 8 organization
• Single +5V power supply
• +12V programming voltage
• Fast access time:90/100/120/150 ns
• Totally static operation
• Completely TTL compatible
• Operating current:30mA
• Standby current: 100uA
• Chip erase time: 1 (typ.)
• Chip program time: 12.5 (typ.)
• 50 minimum erase/program cycles
• Typical fast programming cycle duration 10us/byte
• Package type:
    - 32 pin plastic DIP
    - 32 pin PLCC
    - 32 pin TSOP
    - 32 pin SOP

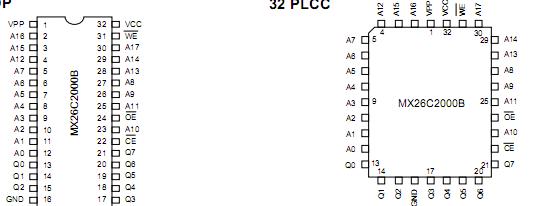

Pinout

Connection Diagram

Specifications

RATING	VALUE
Ambient Operating Temperature	-40 to 85
Storage Temperature	-65 to 125
Applied Input Voltage	-0.5V to 7.0V
Applied Output Voltage	-0.5V to VCC + 0.5V
VCC to Ground Potential	-0.5V to 7.0V
A9 & VPP	-0.5V to 13.5V

Description

The MX26C2000B is a 5V only, 2M-bit, MTP EPROM (Multiple Time Programmable Read Only Memory). It is organized as 256K words by 8 bits per word, operates from a single + 5 volt supply, has a static standby mode, and features fast single address location programming. All programming signals are TTL levels, requiring a single pulse. It is design to be programmed and erased by an EPROM programmer or on-board. The MX26C2000B supports a intelligent fast programming algorithm which can result in programming time of less than one minute.

This MTP EPROMTM is packaged in industry standard 32 pin dual-in-line packages, 32 lead PLCC, 32 lead SOP and 32 lead TSOP packages.
