MX26C1024A

NOTICE:
Specifications contained within the following tables are subject to change.

The MX26C1024A is a 1M-bit MTP ROM^TM (Multiple-Time Programmable Read Only Memory)MTP ROMs offer the most cost-effective and reliable read/write non-volatile random access memory.It is designed to be reprogrammed and erased insystem or in standard EPROM programmers.

The standard MX26C1024A offers access times as fast as 70 ns, allowing operation of high-speed microprocessors without wait states. To eliminate bus contention, the MX26C1024A has separate chip enable (CE) and output enable (OE ) controls.

MXIC's MTP ROMs augment EPROM functionality with in-circuit electrical erasure and programming.The MX26C1024A uses a command register to manage this functionality, while maintaining entirely compatible to EPROM/OTP pinout. The command register allows for 100% TTL level control inputs and fixed power supply levels during erase and programming,while maintaining maximum EPROM compatibility.

MXIC MTP ROM^TM technology reliably stores memory contents after 100 erase and program cycles.The MXIC cell is designed to optimize the erase and programming mechanisms. In addition,the combination of advanced tunnel oxide processing and low internal electric fields for erase and programming operations produces reliable cycling. The MX26C1024A uses a 12.0V ± 5% VPP supply to perform the Program/Erase algorithms.

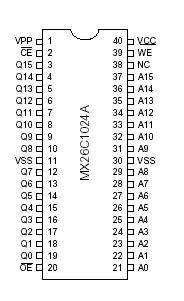

The MX26C1024A MTP ROM^TM is available in industry standard 40 pin dual-in-line package, 44 lead PLCC, 40 TSOP (I) package.
