MX23L6430

Features: • Switchable organization : 4M x 16 ( word mode ) or 2M x 32 ( double word mode )• Power supply 3.0V ~ 3.6V• TTL compatible with multiplexed address• All inputs are sampled at rising edge of system clock• Read performance :- 4-1-1-1@33MHz(RAS Latency=1, CAS ...

product image

MX23L6430 Picture
See larger image
SeekIC No. : 004431605 Detail

MX23L6430: Features: • Switchable organization : 4M x 16 ( word mode ) or 2M x 32 ( double word mode )• Power supply 3.0V ~ 3.6V• TTL compatible with multiplexed address• All inputs are...

MX23L6430 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MX23L6430
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Switchable organization : 4M x 16 ( word mode ) or 2M x 32 ( double word mode )
• Power supply 3.0V ~ 3.6V
• TTL compatible with multiplexed address
• All inputs are sampled at rising edge of system clock
• Read performance :
- 4-1-1-1@33MHz(RAS Latency=1, CAS Latency=3 )
- 5-1-1-1@50MHz(RAS Latency=1, CAS Latency=4 )
- 7-1-1-1@66MHz(RAS Latency=2, CAS Latency=5 )
- 7-1-1-1@100MHz(RAS Latency=2, CAS Latency=5)
- Clock to valid output delay (tSAC) : 6ns(Max.)
• MRS cycle with address key programs :
- RAS Latency : 1 & 2
- CAS Latency : 2 ~ 8
- Burst Length: 8 double word
- Burst Type : Sequential or Interleaved
• DQM for data-out masking
• Package : 86 pin TSOP(II)


Pinout

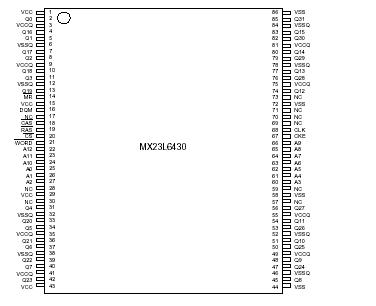

Connection Diagram


Specifications

Item Symbol Ratings
Power Supply Voltage

VCC

-0.5V to 4.6V

Input Voltage

Vi

-0.5V to VCC + 0.5V

Output Voltage

Vo

-0.5V to VCC + 0.5V

Ambient Operating Temperature

Topr

0°C to 70°C

Storage Temperature

Tstg

-55°C to 125°C




Description

The 64M synch. MROM MX23L6430 is a synchronous high bandwidth mask programmable ROM with MXIC's high performance CMOS process technology and is organized either as 4M x 16 bits or 2M x 32 bits depending on polarity of WORD pin. Synchronous design allows precise cycle control , with the use of system clock, I/O transaction are possible on every clock cycle. Range of operating frequencies, programmable burst length and programmable latencies allow the same MX23L6430 to be useful for a variety of high bandwidth, high performance memory system application.
