Product Details

Description

Features:

• Bit organization
    - 2M x 16 (word mode)
    - 1M x 32 (double word mode)
• Fast access time
    - Random access: 100ns (max.)
    - Page access: 30ns (max.)
• Page
    - 8 double words per page
• Current
    - Operating:60mA
    - Standby:50uA
• Supply voltage
    - 3.3V±10%
• Package
    - 70 pin SSOP (500mil)

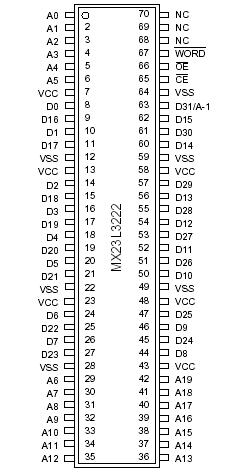

Pinout

Connection Diagram

Specifications

Item	Symbol	Ratings
Voltage on any Pin Relative to V_SS	V_IN	-1.3V to VCC+2.0V (Note)
Ambient Operating Temperature	T_opr	0 to 70
Storage Temperature	T_stg	-65 to 125

Note: Minimum DC voltage on input or I/O pins is -0.5V. During voltage transitions, inputs may undershoot VSS to -1.3V for periods of up to 20ns. Maximum DC voltage on input or I/O pins is VCC+0.5V. During voltage transitions, input may overshoot VCC to VCC+2.0V for periods of up to 20ns.
