MX23L1622

Features: • Bit organization- 1M x 16 (word mode)- 512K x 32 (double word mode)• Fast access time- Random access: 100ns (max.)- Page access: 30ns (max.)• Page- 8 double words per page• Current- Operating:60mA- Standby:50uA• Supply voltage- 3.3V±10%• Package- 70 ...

product image

MX23L1622 Picture
See larger image
SeekIC No. : 004431581 Detail

MX23L1622: Features: • Bit organization- 1M x 16 (word mode)- 512K x 32 (double word mode)• Fast access time- Random access: 100ns (max.)- Page access: 30ns (max.)• Page- 8 double words per p...

MX23L1622 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MX23L1622
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Bit organization
- 1M x 16 (word mode)
- 512K x 32 (double word mode)
• Fast access time
- Random access: 100ns (max.)
- Page access: 30ns (max.)
• Page
- 8 double words per page
• Current
- Operating:60mA
- Standby:50uA
• Supply voltage
- 3.3V±10%
• Package
- 70 pin SSOP (500mil)


Pinout

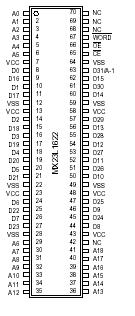

Connection Diagram


Specifications

Item

Symbol

Ratings

Voltage on any Pin Relative to VSS

VIN

-1.3V to VCC+2.0V (Note)

Ambient Operating Temperature

Topr

0°C to 70°C

Storage Temperature

Tstg

-65°C to 125°C

Note: Minimum DC voltage on input or I/O pins is -0.5V.During voltage transitions, inputs may undershoot VSS to -1.3V for periods of up to 20ns. Maximum DC voltage on input or I/O pins is VCC+0.5V. During voltage transitions, input may overshoot VCC to VCC+2.0V for periods of up to 20ns.
