Product Details

Description



Features:

• Bit organization
    - 2M x 8 (byte mode)
    - 1M x 16 (word mode)
• Fast access time
    - 70ns (max.)@3.3V±10%
• Current
    - Operating:25mA
    - Standby:15uA
• Supply voltage
    - 3.0V ~ 3.6V
• Package
    - 44 pin SOP (500mil)
    - 42 pin DIP (600mil)
    - 48 pin TSOP (12mm x 20mm)
    - 44 pin TSOP (Type II)



Pinout

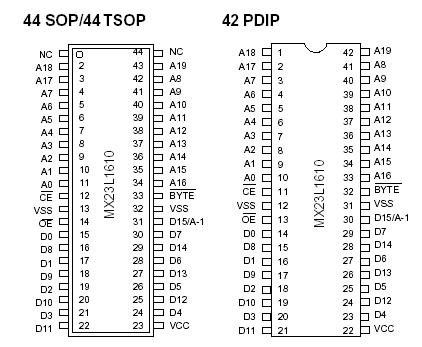

  Connection Diagram


Specifications

Item
Symbol
Ratings
Voltage on any Pin Relative to VSS
VIN
-0.3V to 4.3V
Ambient Operating Temperature
Topr
0 to 70
Storage Temperature
Tstg
-65 to 125

Note: Minimum DC voltage on input or I/O pins is -0.5V. During voltage transitions, inputs may undershoot VSS to -1.3V for periods of up to 20ns. Maximum DC voltage on input or I/O pins is VCC+0.5V. During voltage transitions, input may overshoot VCC to VCC+2.0V for periods of up to 20ns.
