MX23L12822

Features: • Bit organization - 8M x 16 (byte mode) - 4M x 32 (double word mode)• Fast access time - Random access: 120ns (max.) - Page access: 30ns (max.)• Page Size - 8 double words per page• Current - Operating: 75mA (max.) - Standby: 15uA (max.)• Supply voltage - 3...

product image

MX23L12822 Picture
See larger image
SeekIC No. : 004431575 Detail

MX23L12822: Features: • Bit organization - 8M x 16 (byte mode) - 4M x 32 (double word mode)• Fast access time - Random access: 120ns (max.) - Page access: 30ns (max.)• Page Size - 8 double wor...

MX23L12822 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MX23L12822
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Bit organization
    - 8M x 16 (byte mode)
    - 4M x 32 (double word mode)
• Fast access time
    - Random access: 120ns (max.)
    - Page access: 30ns (max.)
• Page Size
    - 8 double words per page
• Current
    - Operating: 75mA (max.)
    - Standby: 15uA (max.)
• Supply voltage
    - 3.3V±10%
• Package
    - 70 pin SSOP (500 mil)
    - 86 pin TSOP(2)


Pinout

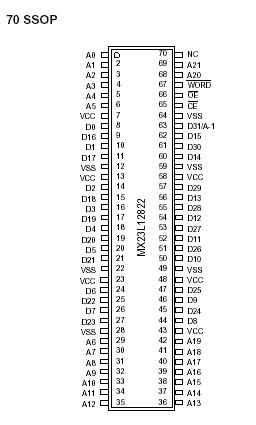

Connection Diagram


Specifications

Item Symbol Ratings
Voltage on any Pin Relative to VSS VIN -1.3V to 2.0V
Ambient Operating Temperature Topr 0 to 70
Storage Temperature Tstg -65 to 125


Note: Minimum DC voltage on input or I/O pins is -0.5V. During voltage transitions, inputs may undershoot VSS to -1.3V for periods of up to 20ns. Maximum DC voltage on input or I/O pins is VCC+0.5V. During voltage transitions, input may overshoot VCC to VCC+2.0V for periods of up to 20ns.
