Product Details

Description



Features:

• Bit organization
    - 8M x 16 (word mode)
• Fast access time
    - Random access: 90ns (max.)
    - Page access: 25ns (max.)
• Page size
    - 8 words per page
• Current
    - Operating:50mA
    - Standby:15uA
• Supply voltage
    - 3.0 ~ 3.6V
• Package
    - 44 pin SOP (500mil)
• Temperature
    - 0~70°C


Pinout

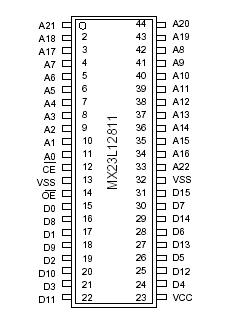

Connection Diagram


Specifications

Item Symbol Ratings
Voltage on any Pin Relative to VSS VIN -1.3V to VCC+2.0V (Note)
Ambient Operating Temperature Topr 0 to 70
Storage Temperature Tstg -65 to 125

Note: Minimum DC voltage on input or I/O pins is -0.5V. During voltage transitions, inputs may undershoot VSS to -1.3V for periods of up to 20ns. Maximum DC voltage on input or I/ O pins is VCC+0.5V. During voltage transitions, inputs may overshoot VCC to VCC+2.0V for periods of up to 20ns.
