Product Details

Description



Features:

• Bit organization
- 1M x 8 (byte mode)
- 512K x 16 (word mode)
• Fast access time
- Random access: 95ns (max.)
- Page access: 50ns (max.)
• Current
- Operating: 60mA
- Standby: 100uA
• Supply voltage
- 5V±10%
• Package
- 44 pin SOP (500mil)
- 42 pin PDIP (600mil)



Pinout

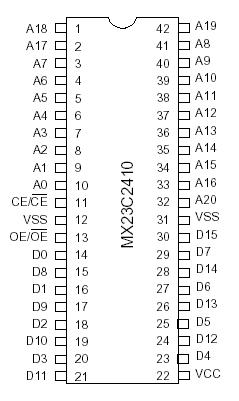

  Connection Diagram


Specifications

Item Symbol Ratings
Voltage on any Pin Relative to VSS

VCC

-0.3V to 7.0V

Input Voltage

Vi

-0.3V to VCC + 0.5V

Output Voltage

Vo

-0.3V to VCC + 0.5V

Ambient Operating Temperature

Topr

0°C to 70°C

Storage Temperature

Tstg

-65°C to 125°C
